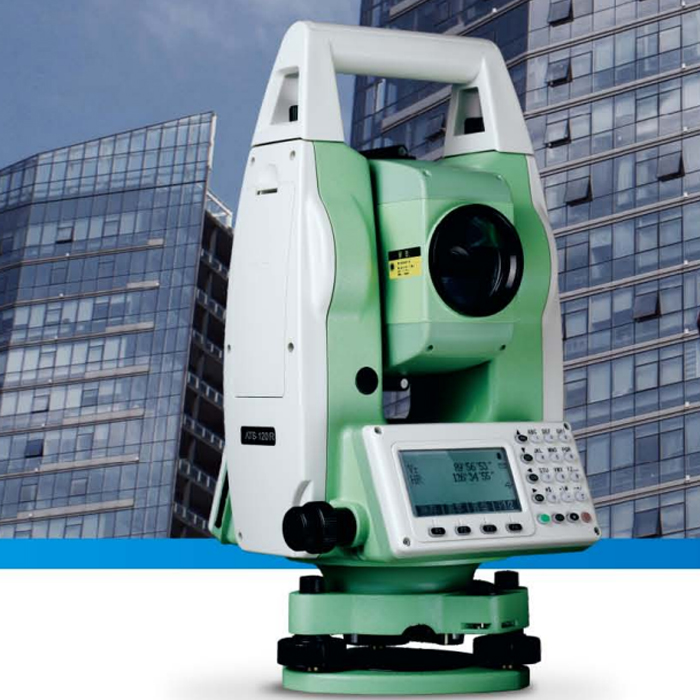

ETS-362R Series Reflectorless Total Station

ETS-362R Series Reflectorless Total Station

Model: ETS-362R4, ETS-362R6, ETS-362R8, ETS-3601R6 Category: Total Station

ETS-362R series Total Station is used in engineering. It have non-prism range function, absolute encoder angle measurement technology, angle measurement accuracy 2 seconds, non-prism measurement accuracy 3mm+2ppm, and a breakthrough in use of the STM32 architecture. ETS-362R series Total Station configures a variety of communication interfaces and smart online calibration software, implements the diversity of data transmission and real-time detection function.

Enquire Now
Description
Technical Features
Powerful and Fast EDM Capabillity
  • ETS-362R series Total Station's non-prism measurement range can up to 800 meters. Non-prism measurement accuracy 3mm+2ppm Accurate measurement 0.8S Track measurement 0.4S
STM32 Architecture
  • The STM32 MCU based on ARM CortexTM-M processor enables the total station has extra high processing speed and low-power consumption.
Intelligent Callibration Software
  • Accessible for real-time diagnosis to ensure trouble- free operation. The software can determine 90 percent of the Problem.
Absolute Encoder Angle Measurement
  • 1023 pairs of absolutely coded disc.All Series' angle measurement accuracy is two seconds. Starting without initialization. The data will save automatically when the power failure.
Stable Dual-axis Compensation
  • Stable Dual-axis Compensation.Compensation range 3'.Operation can be visualized and High accuracy of angle measurement.
Rich Communication and Transmission
  • With RS232C,SD,USB and MiniUSB communication interface. Using Bluetooth for data transmission, make data transmission more convenient.
Software Features
  • Coordinate Measurement
  • REM
  • MLM
  • Distance Offset
  • Plane Offset
  • Resection
  • Road
  • Angle Offset
  • Area
  • Column Offset

We are fully activated for Sale, Support, Supply & Service in our company "M/s ADVANCED SURVEYING INSTRUMENTS (INDIA) PVT. LTD." on all over INDIA Basis, 'ASI' already in Survey Field since 2009 with good reputation and associated with very reputed companies.
As well as we are SOLE AUTHORIZED DISTRIBUTOR for CHC Brand Full Range of GNSS Products and "ROBUST" Series Total Stations, Theodolites & Automatic Level in "M/s ADVANCED SURVEYING INSTRUMENTS (INDIA) PVT. LTD.".
We are REGISTERED VENDOR of L&T, GMR, SHAPOORJI, KEC INTERNATIONAL, DMRC, PATEL ENGINEERING, INDIAN RAILWAY, COAL FIELD, GAMMON INDIA etc for SALES & SERVICES.
We are an ISO CERTIFIED & NSIC REGISTED Firm.

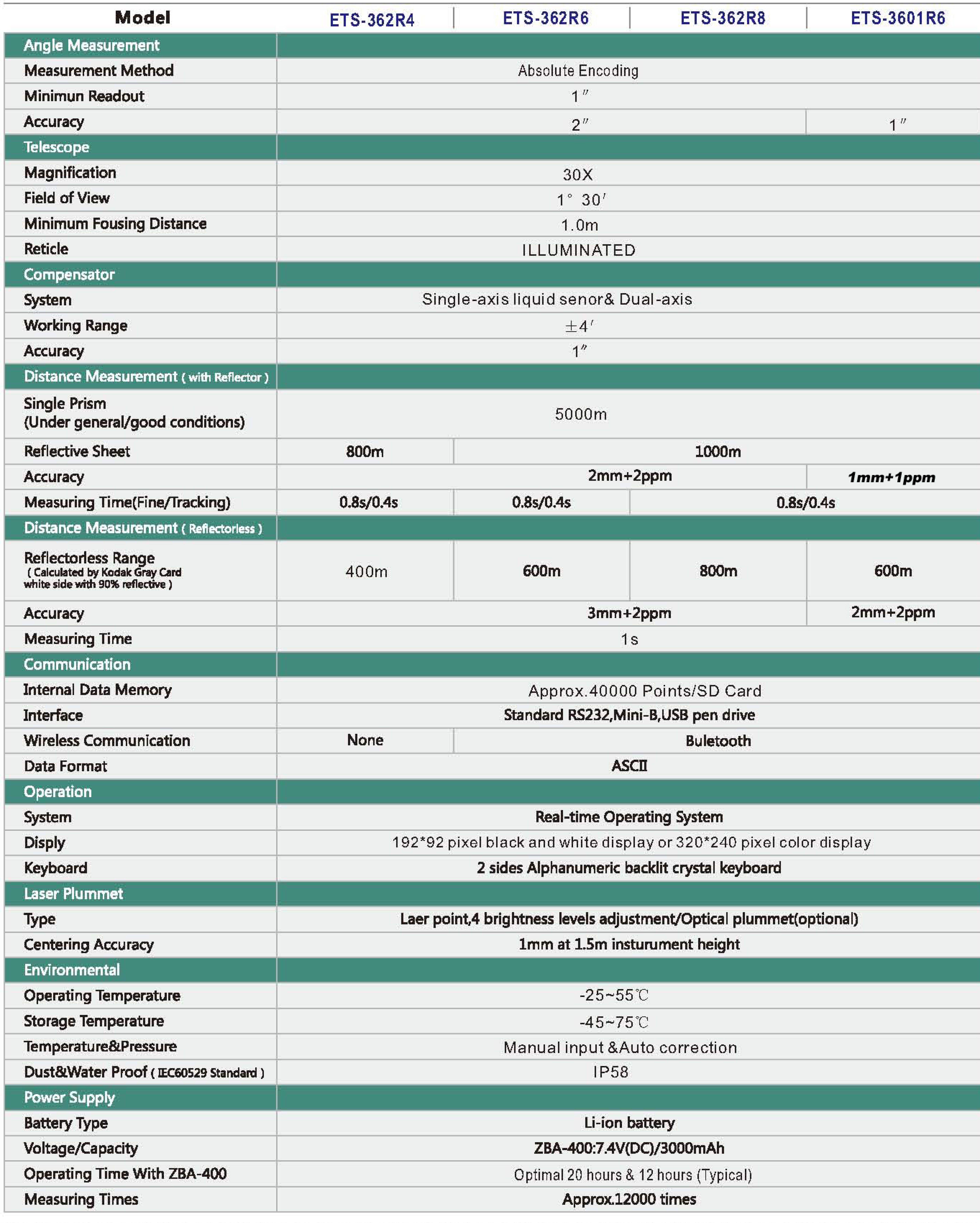

Specifications

  • O STM32 Architecture
  • Powerful and Fast EDM Capability
  • Intelligent Callibration Software
  • Absolute Encoder Angle Measurement
  • Stable Dual-axis Compensation
  • Rich Communication In built Laser Plummet and Transmission
