Bosch GCL 25 Line & Point Laser Level

Bosch GCL 25 Line & Point Laser Level

SKU: 0601066B00 Category: Line & Point Lasers

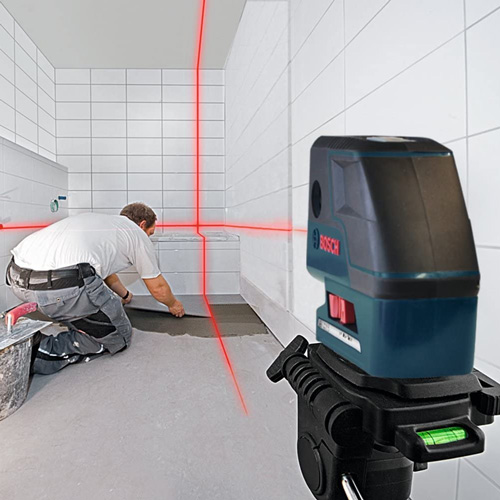

The Bosch GCL 25 five-point self-leveling alignment laser with cross-line is the ultimate multi-use combination laser. It is ideal for users who need a more adaptable, effective, and convenient tool for daily use. It is perfect for any jobsite or workshop with an easy-to-use one button operation feature. The point laser portfolio is enhanced thanks to this new laser by Bosch.

Measuring Modes:
  • Working Range Lines upto 30m
  • Soft grip components prevent slipping
  • Projection and leveling accuracy of ± 0.3mm/m, plumb points ±0.5mm/m
  • Compact – Pocket size for handy usage
  • Easy to Use – Simple & easy interface for various measuring functions
  • Vivid line visibility and robust design for maximum work efficiency
Description
Key Features of Bosch GCL 25 Professional Combi Laser Level Device

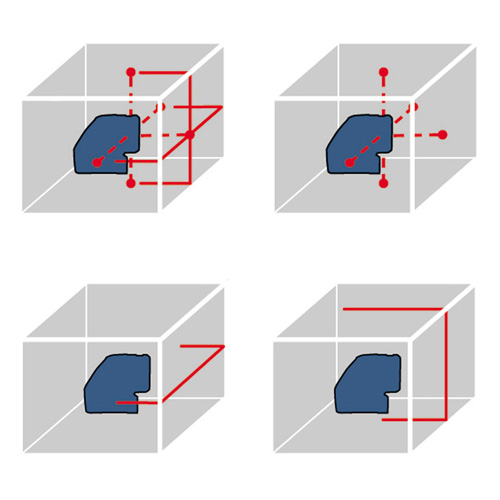

  • The Bosch GCL 25 five-point self-leveling alignment laser with cross-line delivers two-in-one versatility, with combination horizontal level, vertical level, square, plumb transfer and layout applications. Electricians, plumbers, installers, framers or general contractors no longer have to pack two lasers to jobsites or off-site projects. The five points plus cross-line functionality precisely align, square and transfer points, leaving hands free to get on with layout.
Flexible functions for a range of tasks

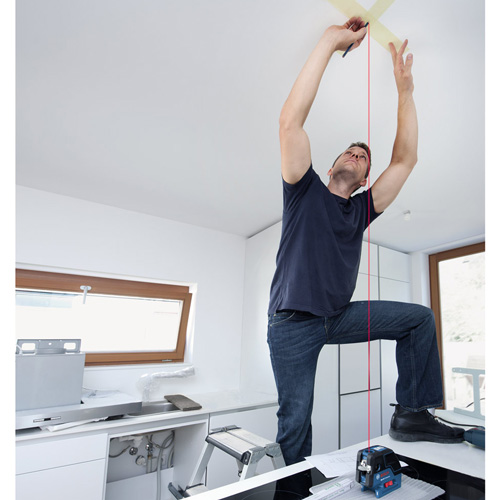

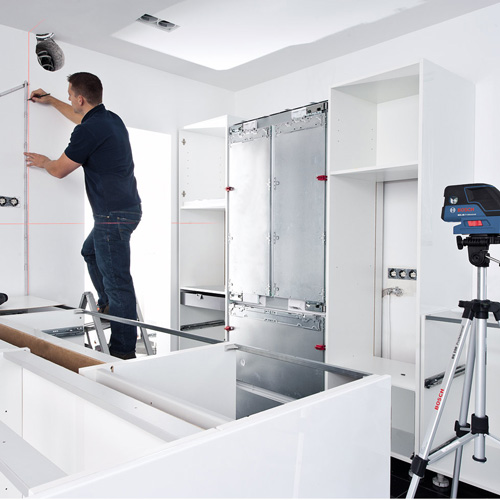

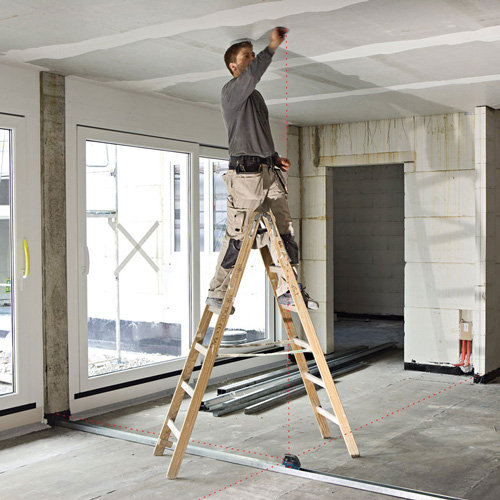

  • This laser is a multipurpose workhorse. It is ideal for the operator who works a variety of jobs involving squaring, plumbing and leveling where a multifunction tool is required. Its various applications include transferring points to the ceiling or lighting installations using plumb points, and squaring a room for partition or walls. The manual mode locks lines for use at any angle.
Accuracy and utility
  • The GCL 25’s Smart Pendulum Leveling System self-levels and indicates out-of-level condition. The easy-to-use one-button operation is ideal for users who need an adaptable, effective and convenient tool for daily use. It has a plumb range of 15 feet, a horizontal point range of 100 feet and a lines range of 30 feet. The laser’s accuracy is within 1/8 inch at 30 feet. The line/point selection keypad allows for switching between point and line laser function.
Push-button control
  • The GCL 25 saves you time, money and space with the simple switch of a button. Its three different levels are: the laser is on and in self-leveling mode, the laser is on but self-leveling is off, or the laser is off. The LED battery status is located on top of the tool for added user convenience, and the laser is ergonomically designed for a comfortable and solid grip.
Specifications of Bosch GCL 25 Point & Line Laser Level
Working Range Lines 10m/Points max. 30m*
Accuracy ±0.3mm/m, plumb points ±0.5mm/m
Laser diode 635 nm/< 1 mW
Operating temperature -10 – 50°C
Storage temperature -20 – 70°C
Self-levelling range ±4°
Laser class 2
Levelling time 4s
Dust and splash protection IP54
Power supply 4 x 1.5 V LR6 (AA)
Operating time (max.) 15h
Tripod thread 1/4″, 5/8″
Weight, approx. 0.6kg
Projection 2 lines / 5 points
Warranty One Year Warranty
Bosch GCL 25 Scope of delivery:
  • Bosch GCL 25
  • Carrying Pouch
  • 4 x AA Alkaline Batteries
  • User Manual
Video of Bosch GCL 255 Professional Combi Laser Level
