The Bosch GLL 3-15X Professional is positioned as an advanced level 3-line crossline laser level. It is a simple and easy product which has adequate technical specification and a more competitive pricing. It’s the ideal tool for users doing the basic levelling work in interior area at relatively small job sites!
Measuring Modes:
Working Range 15m
Working Range Point 5m
Soft grip components prevent slipping
Projection and leveling accuracy of +/- 0.2mm @ 1m
Self leveling function The instrument levels itself in the range of ± 3°
Compact – Pocket size for handy usage
Easy to Use – Simple & easy interface for various measuring functions
Three line laser with a cross beam and one vertical side beam
Vivid line visibility and robust design for maximum work efficiency
Key Features of Bosch GLL 3-15X Professional Laser Level Device
The Bosch GLL 3-15X Professional self-leveling three-line laser level can help with alignment, leveling and squaring needs. Bright laser lines can be used in self-leveling mode or locked in manual mode for sloped applications. The unit features an audio alarm to alert that the tool is out of range in self-leveling mode so you can build with confidence.
One horizontal line, two vertical lines at 90 to each other – for level, align and squaring applications
Smart pendulum system – self-levels and indicates out-of-level condition; switch slider to lock for transport
Three line selection modes – projects three lines independently or together for a wide array of level/align and squaring application
Line generator laser level is great for a variety of projects
Specifications of Bosch GLL 3-15X Laser Level
Working Range, line
15m
Working Range, point
5m
Levelling Accuracy
±0.2mm/m
Projection
3 lines + 1 plumb point
Self-levelling range
±3°
Laser diode / class
635 – 650nm / 2
Tripod thread size
5/8″
Operating time, max.
24h
Dust and splash protection
IP54
Batteries
type AA 4 × 1.5 V
Weight
720g
Warranty
One Year Warranty

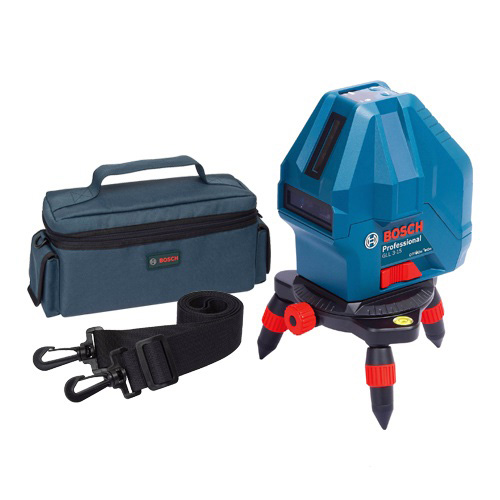

Bosch GLL 3-15X Scope of delivery:
Bosch GLL 3-15X
Carrying Pouch
Tripod Adapter
4 x AA Alkaline Batteries
User Manual
Video of Bosch GLL 3-15X Professional Laser Level
