Bosch GLL 3-80P Crossline Laser Level

Bosch GLL 3-80P Crossline Laser Level

SKU: 0601063U80 Category: Line & Point Lasers

The Bosch Professional Laser Level GLL 3-80 CG enables simultaneous horizontal and vertical levelling with just one tool thanks to 3 x 360° lines—1 horizontal and 2 vertical.

The laser lines on the Bosch GLL 3-80 CG are green, which deliver up to 4x better visibility than red laser lines.

  • Working Range 30m
  • Working Range with Laser Receiver 120m
  • Freestanding base with magnets – To attach to metal track. Both 1/4 inch and 5/8th inch tripod mounting
  • Soft grip components prevent slipping
  • Projection and leveling accuracy of +/- 0.2mm @ 1m
  • Self leveling function The instrument levels itself in the range of 4°

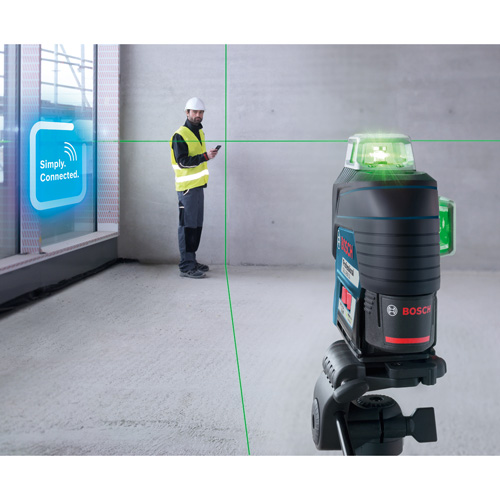

  • Simply Connected: Use the Levelling Remote App, a Bluetooth-connected smartphone app, for remote-control use and contactless adjustment of the laser level
  • Easy to Use – Simple & easy interface for various measuring functions
  • Provides Three Precise 360-degree Full Plane Coverage in Both Horizontal and Vertical Operations
  • Vivid line visibility and robust design for maximum work efficiency
Description
Key Features of Bosch GLL 3-80P Professional Laser Level Device
  • The Bosch Professional Green Laser Level GLL 3-80CG enables simultaneous horizontal and vertical levelling with just one tool thanks to 3 x 360° lines—1 horizontal and 2 vertical.
  • The lines project around an entire room and from floor to ceiling, making it easier than ever both to collaborate with colleagues and avoid frequent repositioning.
  • The laser lines on the Bosch GLL 3-80 CG are green, which deliver up to 4x better visibility than red laser lines.
  • The device is highly accurate, delivering precise results within 0.2 mm/m */**, with a working range of up to 30m (or 120m with the additionally available LR 7 receiver). To reduce the need for manual adjustments, the device can self-level on non-level surfaces up to +/- 4 degreeor be controlled using a Bluetooth-connected smartphone app. When diagonal lines are needed, the device can also be positioned in lock mode.
  • The Cal Guard Function warns users of a calibration error by illuminating the red LED light on the device. Users can see detailed information about the error in the smartphone app.

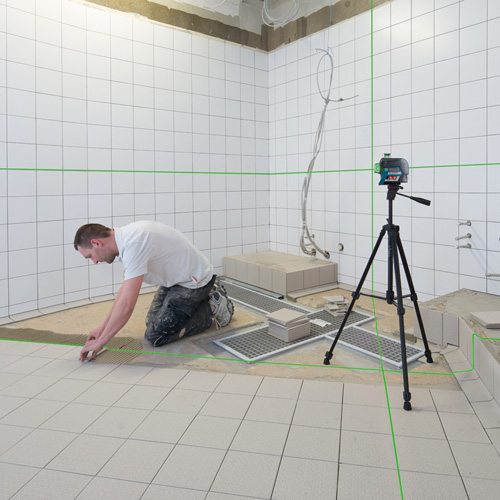

  • Green laser diodes provide excellent visibility, even at long distances. The laser level is robust, thanks in part to an IP 54 dust and splash protection. It can be used for a variety of applications including installing windows, mounting shelves, laying drainage pipes and tiles, or building framework for drywall.
Multi-line laser

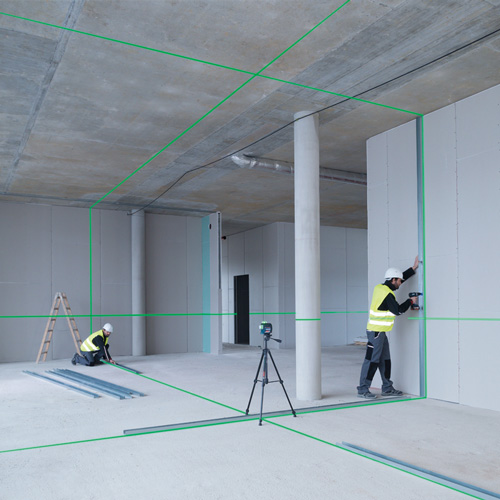

  • The 3 simultaneously available laser lines ( 1 horizontal and 2 vertical 360° ) enable parallel work in a team with only one tool. Thanks to the very clearly visible laser lines, there is no need to repeatedly position the tool during leveling work in larger rooms. Moreover, the all-round availability of the three laser lines enables simultaneous work in a team with only one tool.
Specifications of Bosch GLL 3-80P Laser Level
Working Range 40m
Working Range with Laser Receiver 80m
Levelling Accuracy 0.2mm/m
Projection 3 x 360° line
Self-levelling range
Laser diode / class 630 – 650 nm, < 10mW / 2
Tripod thread size 1/4″, 5/8″
Operating time, max. 18 h in 1-line mode
Dust and splash protection IP54
Batteries type AA 4 × 1.5 V
Weight 760g
Warranty One Year Warranty
Bosch GLL 3-80P Scope of delivery:
  • Bosch GLL 3-80P
  • Carrying Pouch
  • 4 x AA Alkaline Batteries
  • User Manual
Specifications of Bosch GLL 3-80 CG Laser Level
Working Range 30m
Working Range with Laser Receiver 120m
Levelling Accuracy ±0.2mm/m
Projection 3 x 360° line
Self-levelling range ±4°
Laser diode / class 500 – 540 nm, < 10 mW / 2
Tripod thread size 1/4″, 5/8″
Operating time, max. 4 h (4 x AA) in 3-line mode
Dust and splash protection IP54
Batteries type AA 4 × 1.5 V
Operating temperature -10 – 40°C
Storage temperature -20 – 70°C
Weight 900g
Warranty One Year Warranty
Bosch GLL 3-80P Scope of delivery:
  • Bosch GLL 3-80 CG
  • Carrying Pouch
  • Target Plate
  • Universal Holder BM 1 Professional
  • Clamp
  • 4 x AA Alkaline Batteries
  • User Manual
Video of Bosch GLL 3-80 CG P Professional Laser Level
