Bosch GLM 150C – 150m Range

Bosch GLM 150C – 150m Range

SKU: 0601072FK0 Category: Laser Distance Meters
First Bosch laser rangefinder with camera: the GLM 150 C Professional from Bosch

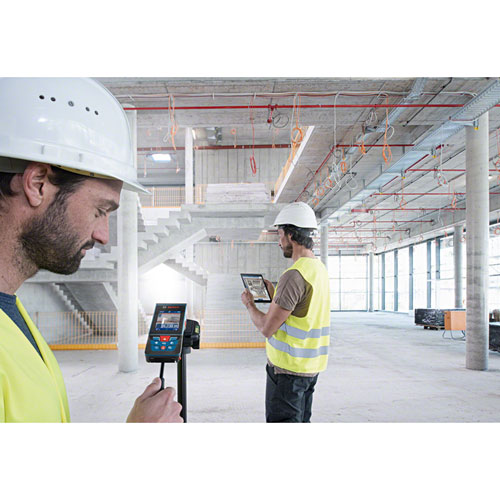

Measuring lengths, areas, volumes and inclines will become even easier and more efficient with the Bosch GLM 150C Professional laser rangefinder. The device is suitable for all trades that depend on fast and precise measurements indoors and outdoors especially – from painters and plasterers to landscape gardeners and architects.

  • Measuring Range 0.05m to 150m
  • Measuring Units m, cm, mm, ft, inch
  • Camera for optimum visibility of laser point at a distance of 150m
  • Measuring Accuracy ± 1.5mm
  • Color Screen Display
  • 0°–360° (4×90°) Tilt Sensor
  • 50 Points Memory
  • IP54 dust and splash proof
  • 10000 individual measurements battery life
Description

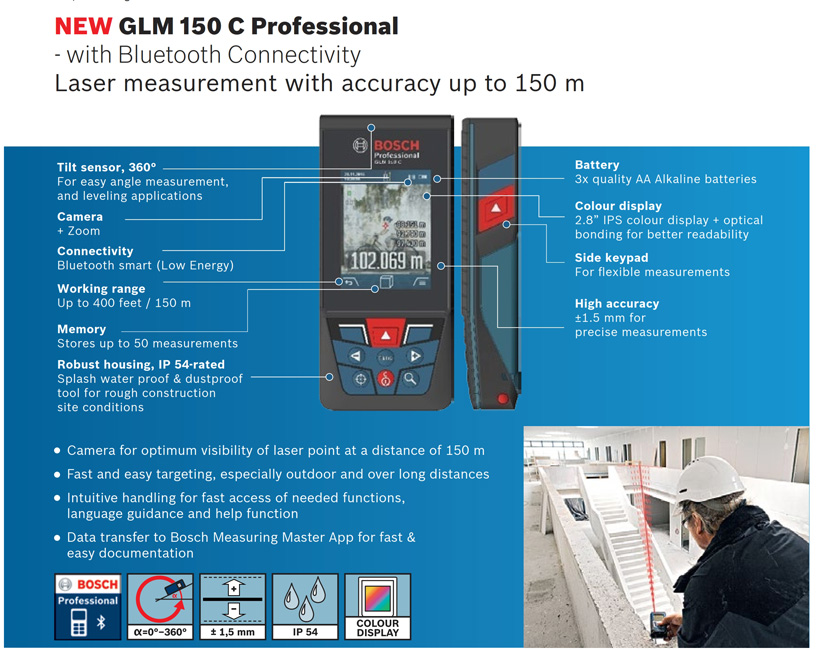

Key Features of Bosch GLM 150 C Professional Laser Measuring Device

In bright environments or over long distances, it has been difficult to accurately identify the laser spot of a rangefinder. This is where the new Bosch GLM 150C Professional comes in: It is the first Bosch laser rangefinder with integrated camera. With the help of a crosshair on the display, users can precisely aim at the target point – and thus be able to precisely measure even at long distances of up to 150 meters. The camera has a resolution of five megapixels, works with a three-level zoom, stores up to 50 points in memory.

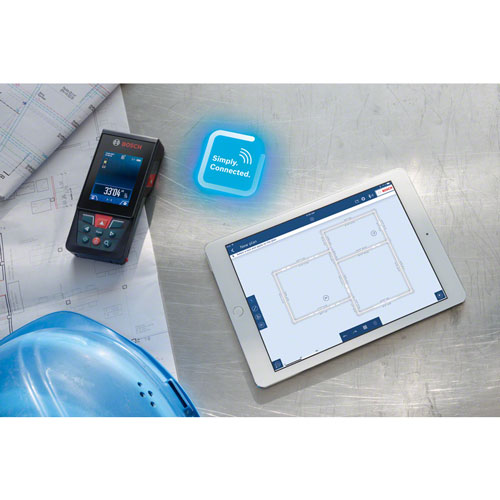

Bluetooth interface for processing the data

Thanks to the Bluetooth interface, the measured values ​​can be directly transferred to the Measuring Master App for further processing. For example, you can share measurement data with colleagues, make material calculations or create and customize floor plans. In addition, the app serves as a remote control for the GLM 150 C Professional, so measurements can be performed without blurring and without the assistance of a colleague. The Measuring Master App is available for free download from the Apple App Store and Google Play Store. In addition, the internal memory can be read via a micro USB interface on the PC as a CSV list and JPEG.

Simple operation minimizes application errors

The Bosch GLM 150C Professional relies on easy operation with a selection wheel like the GLM 50C Professional. The selectable functions include, for example, the staking function, with which you can quickly measure and mark the same distances. The device is also equipped with a 360° tilt sensor and is thus also suitable for measuring inclinations and as a digital spirit level. In addition, the GLM 150C Professional can be switched on and off via an additional measuring button on the side, triggering the measuring process, ensuring comfortable and flexible handling in any environment. The newly integrated user guide offers craftsmen help with text and animations from the first application. Also new is the automatic detection of the measuring pin: the device recognizes when the pin is fully extended, for example when measuring from a corner. In that case, users do not have to manually switch the reference, just confirm it. This minimizes measurement errors.

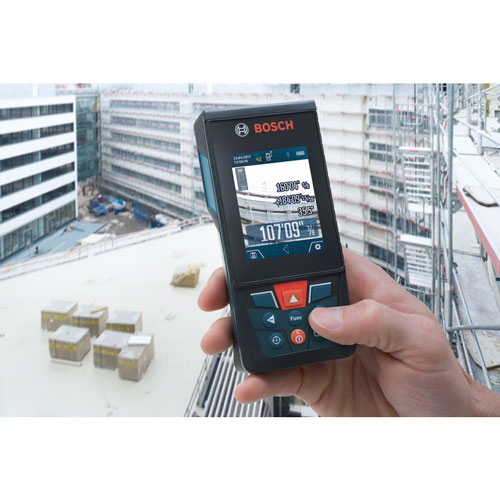

Easy-to-read color display with durable protective glass

Users can read and check the last four measurements and the current measurement result during the measurement on the 2.8-inch color display. In order to easily read the values ​​in any situation and inclination, the color display rotates automatically – like a smartphone. The same display technology is also used: The LCD module is firmly connected to the glass surface, so that the light can not break in the gap and is not reflected. In addition, the display is easy to see from every perspective – even from the side. This means better readability in contrast to conventional laser rangefinders, especially in outdoor areas. Thanks to the robust protective glass, the Bosch GLM 150 C Professional can cope with any construction site application.


Specifications of Bosch GLM 150C Laser Distance Meter

Minimum Measurement 0.05m / 0.16ft
Maximum Measuring Range 150m / 492ft
Measuring Accuracy ±1.5mm
Measuring Units m, cm, mm, ft, inch
Memory 50 Points Memory
Display Illumination Yes
Measurements per recharge of batteries up to 10,000 Measurements
Tripod thread Yes
Batteries 3 x AA Battries
Digital viewfinder Camera integrated with zoom feature
Data transfer Bluetooth™ Smart
Protection class IP54
Dimension 142 x 64 x 28 mm
Laser Class 2
Warranty One Year Warranty.
Functions of Bosch Laser Distance Meter GLM 150 C
Distance measuring 0.05m / 0.16ft
Permanent measuring Yes
Addition/Subtraction Yes
Area Yes
Volume Yes
Pythagoras Yes, 3-point, partial height
Digital Spirit Levelling Yes
Bosch GLM 150C Scope of delivery:
  • Bosch GLM 150C
  • Carrying Pouch
  • 3 x AA Alkaline Batteries
  • User Manual
