Bosch GPL 5 Point Laser Level

Bosch GPL 5 Point Laser Level

SKU: 0601066200 Category: Line & Point Lasers

The Bosch GPL 5 Professional five-point self-leveling alignment laser features has an innovative design combined with cutting-edge technology. It features quad mirror technology, integrated reference lines, a smart pendulum leveling system, and easy field re-calibration.  This tool is ideal for both professional and DIYers-it is packed with top technology in a compact package.

  • Working Range Lines upto 30m
  • Soft grip components prevent slipping
  • Projection and leveling accuracy of +/- 0.3mm @ 1m
  • Self leveling ±5° longitudinal axis, ± 3° traverse axis
  • Compact – Pocket size for handy usage
  • Easy to Use – Simple & easy interface for various measuring functions
  • Vivid line visibility and robust design for maximum work efficiency
Description
Key Features of Bosch GPL 5 Professional Laser Level Device
  • The Bosch GPL 5 Professional five-point self-leveling alignment laser features has an innovative design combined with cutting-edge technology. It features quad mirror technology, integrated reference lines, a smart pendulum leveling system, and easy field recalibration.  This tool is ideal for both professional and DIYers-it is packed with top technology in a compact package.

Innovative Technology

  • The Bosch GPL5 self-leveling alignment laser features top-of-the-line technology. First, it has quad-mirror technology that provides five-point lasers for level, plumb up, plumb down, and square. This laser can be precisely positioned during use and transfer points for easy and accurate transfer and alignment of points in level, plumb, and square grade applications. It also has a smart pendulum leveling system that allows the laser to self-level. In addition, this system allows the laser to sense and indicate out-of-level condition and locks when the laser is switched off.

User Features

  • The Bosch GPL5 has integrated reference lines, allowing for exact positioning of the tool and transfer of point. It also accurately transfers and aligns level, plumb, and 90-degree square points. This laser has easy field re-calibration as well, that maintains the precision of the laser while preventing down time. This laser has a conveniently located battery compartment on the top of the tool, so that it is always easy to access. This laser measures 4 1/8-inches in height, making it pocket-sized or able to fit in a pouch on a tool belt. The GPL5 comes with a multipurpose attachment that will position and mount with magnets, strap, or threaded mounts (1/4-inch at 20 and 5/8-inch at 11).

Laser Specifics

  • The GLP 5 laser has an accuracy within 1/4-inch at 100-feet and a range up to 100-feet. It’s leveling type is self, with up to 5-degrees. The laser diode is a Class 2 635-nanometer that is less than or equal to 1 milliwatt. The mount threading is 5/8-inch at 11 and 1/4-inch at 20. The operating temperature ranges from 24-degrees Fahrenheit (-10-degrees Celsius) to 122-degrees Fahrenheit (50-degrees Celsius). The overall dimensions of the laser are 4.1-inches by 3.1-inches by 1.6-inches and it weighs 1 pound.
Specifications of Bosch GPL 5 Point Laser Level
Working Range upto 30m
Accuracy ±0.3mm/m
Laser diode 635 nm, < 1 mW
Operating temperature -10 – 40°C
Storage temperature -20 – 70°C
Laser class 2
Self-levelling range ±5° longitudinal axis, ±3° traverse axis
Levelling time 4s
Dust and splash protection IP 5X
Beam diameter 5mm on tool
Power supply 3 x 1.5 V LR6 (AA)
Operating time (max.) 24h
Tripod thread 1/4″, 5/8″
Weight, approx. 0.25kg
Projection 5 points
Warranty One Year Warranty

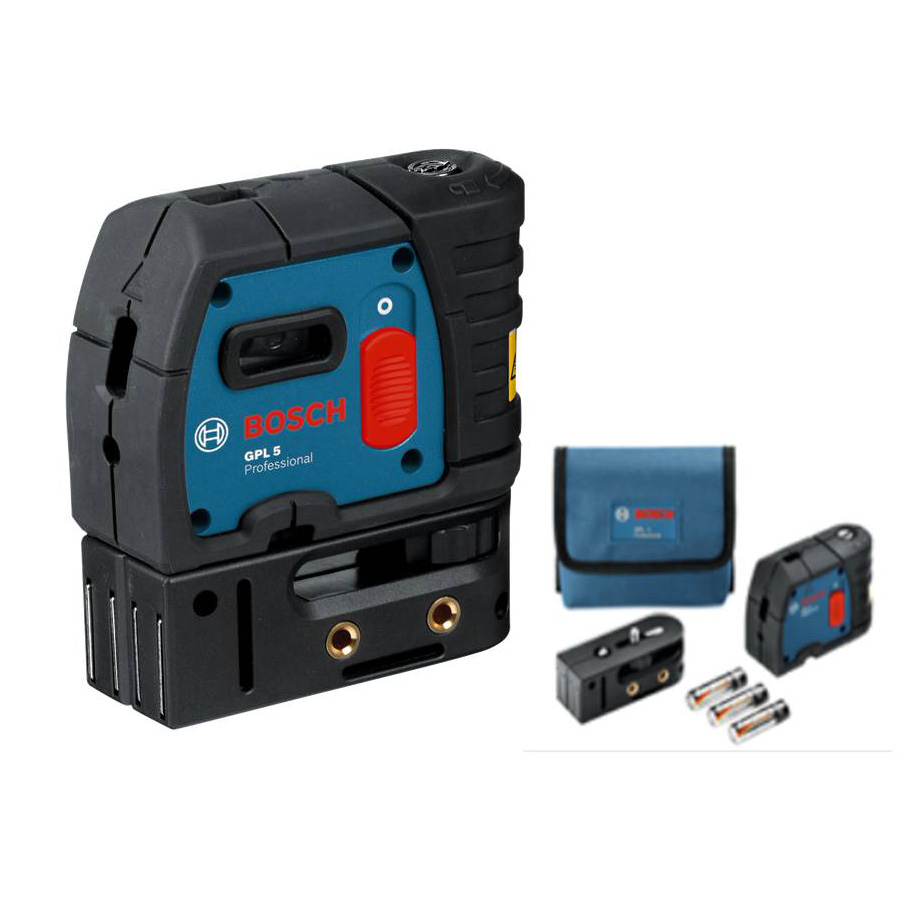

Bosch GPL 5 Scope of delivery:
  • Bosch GPL 5
  • Multi-functional mount
  • Carrying Pouch
  • 3 x AA Alkaline Batteries
  • User Manual
Video of Bosch GPL 5 Professional Point Laser Level
