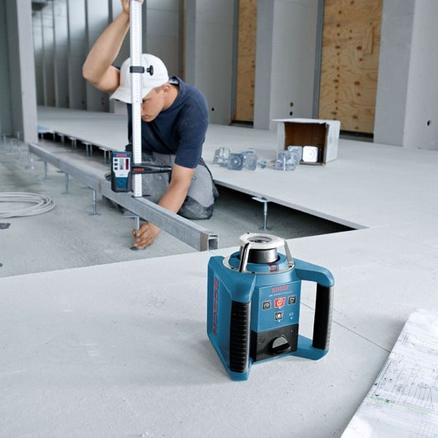

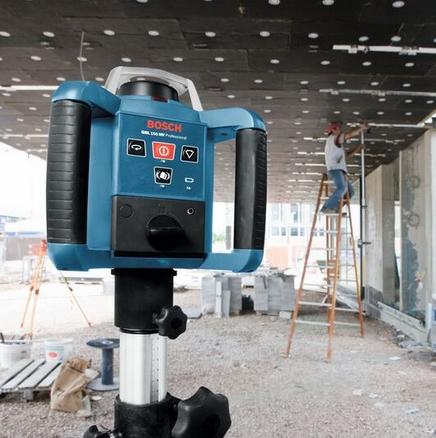

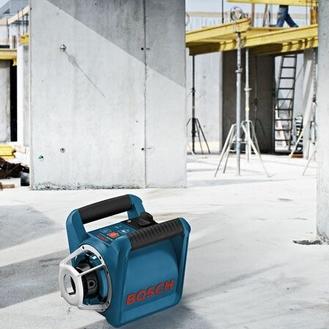

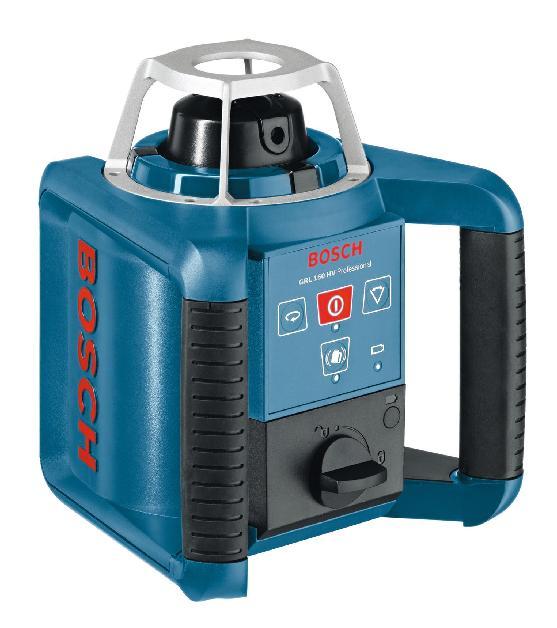

Bosch GRL 150HV Self Levelling Rotation Laser with Receiver

Bosch GRL 150HV Self Levelling Rotation Laser with Receiver

SKU: BOSCHGRL150 Category: Rotating Laser Level
Bosch GRL 150 HV Rotation Laser complete with case, LR1 receiver, external charger, battery pack, target plate & laser goggles.
  • Bosch Rotary Laser level, is easy to operate with self levelling in horizontal and vertical planes for all construction levelling applications.
Enquire Now
Description
Advantages: Bosch GRL 150HV SET Professional

  • Horizontal and vertical self-levelling adjustment saves time
  • One function = 1 button with self-explanatory LEDs – easy to use
  • Long distance working with LR1 receiver
  • Line function
  • Metal protective cage – the head is protected in the event of a drop or shock
  • IP 54 protected against dust and water projection (splash-proof)
  • 2 ergonomic soft-grip handles
  • Working distance 150m with the LR1 Receiver
  • Keypads with large buttons, intuitive symbols and clear LEDs
  • Works even after 1m drop onto concrete
  • Works with rechargeable batteries, alkaline or plugged to mains
  • Rotation mode: 150/300/600rpm
  • Intuitive levelling process: similar to traffic light process, flashing green (levelling), static green (levelled) & red (cannot level – inclination is >5o)
  • Scanning mode: 10 o / 30 o / 45o
  • Battery status: white (status ok), flashing red (before changing the batteries), static red (batteries need charging – battery can be charged during use (charge time 14 hours)
  • Shock warning function: white (not active – after a shock the laser levels again), green (active after a shock, the laser levels again). Red – active the laser has switched off due to a shock)
  • 30 second delay after pushing the shock activation button – this must be activated when there is a significant risk that the laser position will be altered due to construction activities
  • Strong magnets can be fixed to metallic studs
  • Softgrip coating
  • 2 self-explanatory displays on front and back
  • Large reception area: 4cm high
  • Integrated spirit level
  • 9v alkaline battery
  • Automatic switch-off after 10 mins or 10 mins idle
Technical data: Bosch GRL 150HV Professional
Laser diode 635 nm, < 5 mW
Operating temperature -10 – 50 °C
Storage temperature -20 – 50 °C
Laser class 2
Working range 30 m
Working range with receiver 150 m
Levelling accuracy 0,1 mm/m
Self-levelling range ± 8 % (± 5°)
Dust and splash protection IP 54
Rotation speed 150, 300, 600 rpm
Beam diameter 5 mm on tool
Power supply 4 x 1.5 V LR20 (D)
Operating duration, max. 40 h
Tripod connection 5/8
Weight 1,8 kg

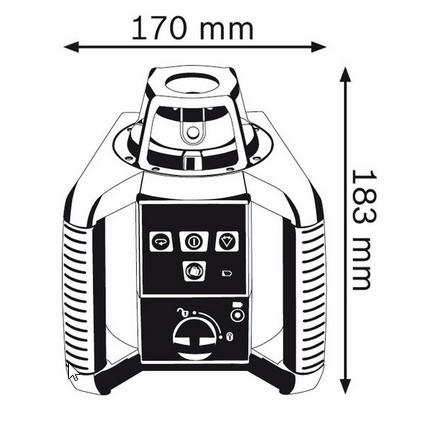

Length 170 mm
Width 183 mm
Height 186 mm
  • Bosch GRL 150HV Professional
  • Carrying Case
  • Target Plate
  • Laser goggles
  • Laser receiver LR 1 Professional
