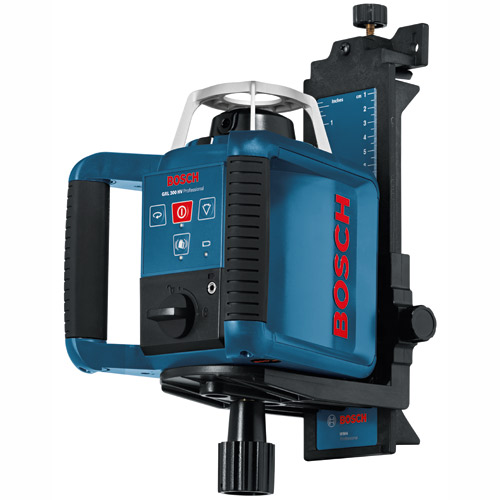

Bosch GRL300HV Self Leveling Rotating Laser

Bosch GRL300HV Self Leveling Rotating Laser

SKU: BOSCHGRL300HV Category: Rotating Laser Level

Bosch’s GRL 300 HV Professional self-leveling rotating laser provides rapid horizontal and vertical self-leveling and an accurate line even at longer distances. Thanks to the included remote control it’s also very easy to use, even for a single person. Its combining of function and usability make it an ideal tool for all professionals and contractors specializing in interior and general construction.


Reliable and Bright

Bosch’s GRL 300 HV self-leveling rotating laser projects 90-degree plumb and layout lines for squaring, with the laser plumb line continually available for the 90 degree layout of walls. Both horizontal and vertical beams are also conveniently self-leveling. The bright, highly visible, laser lines use smart laser technology to adjust laser luminosity while the rotating is occurring to promote maximum visibility and, at the same time, maintain safety class 2. It has a full array of beam enhancements, including variable speed selection and variable scan angles for maximum visibility in a range of light conditions. Also, the Bosch GRL 300HV has a very solid top housing assembly, which provides housing protection and access to the rotating head. The overall combination is robust, simple, and reliable.

Description
Sturdy and User Friendly

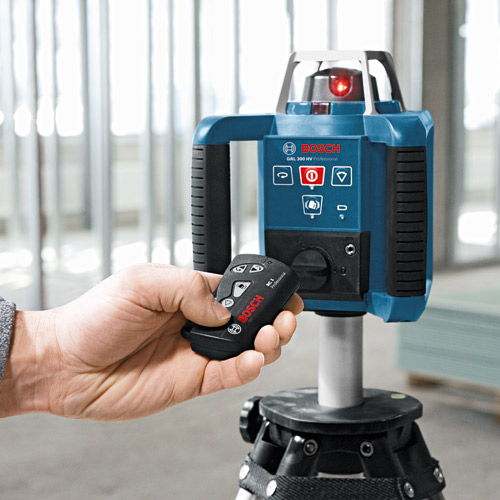

Bosch’s GRL 300 HV self-leveling rotating laser is IP54 rated, which means that it’s protected against dust and water, providing a longer product life. The battery tray is conveniently located to provide easy access to batteries and changing. There is a tactically oriented keypad that’s recessed and features a variety of functions, such as a single on/off button, variable speed rotation (there are four preset speeds), variable scan angle (there are four preset scan angles), a battery level indicator, and a disturbance monitor. These functions can also be replicated on the included pocket-sized remote, which comes in handy especially when the laser is mounted within hard-to-reach areas.

Multiple Applications

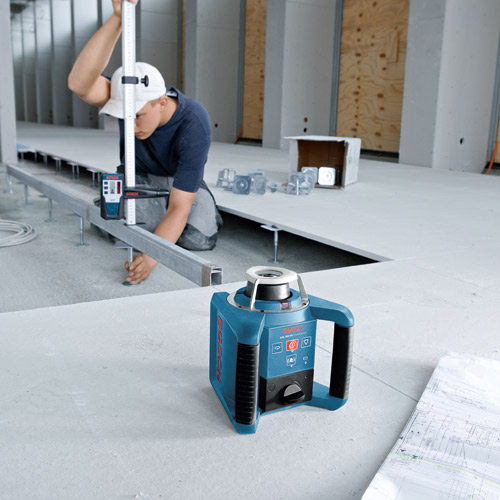

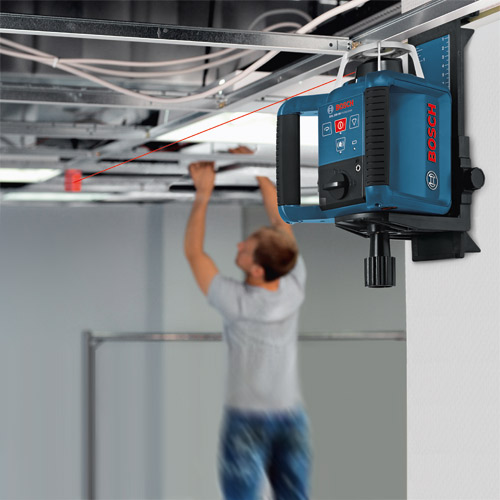

Thanks to its self-leveling rotation, bright lines, sturdy construction, and helpful features, the GRL 300 HV self-leveling rotating laser is an asset with a range of applications, including helping with projects having to do with ceiling installation, computer and access flooring, concrete interior, demountable walls, electrical and lighting installation and work, fire sprinkler leveling and layout, general leveling and layout, HVAC ducting and vents, partitions, wall stud installing, and others.

Bosch GRL 300HV Professional Features:
  • Range up to 300 metres when used with the LR1 receiver
  • Easy to operate thanks to one button per function and self-explanatory display
  • Easy to set up in both the horizontal and vertical modes due to automatic self-levelling of 8% (± 5°)
  • The shock warning function, which can be switched on and off, prevents levelling errors in the event of shocks or vibrations
Bosch Laser Receiver LR1 Features:
  • Handy receiver for indoors and outdoors for ranges of up to 300 m in combination with Rotation Laser Level GRL 300 HV Professional
  • Optical and acoustic alignment of the laser beam level
  • Dust and splash protection (IP54)
  • Top-mounted magnets for better fixing
Bosch GRL 300HV Professional Applications:
  • General construction – Masonry, metal construction and wood construction
  • Installation – Dry walls, partition walls, laying floors, laying sockets and laying air conditioning systems
  • Finishing – Laying tiles and wall covering
Laser diode 635 nm, < 1 mW
Laser class 3R
Working range with receiver 300 m
Levelling accuracy 0,1 mm/m
Self-levelling range ± 5° (8%)
Dust and splash protection IP 54
Rotation speed 150, 300, 600 rpm
Power supply 2 x 1.2 V HR20 (D) (9 Ah) / 2 x 1.5 V LR20 (D)
Tripod connection 5/8″
Weight 1.8 kg
  • Bosch GRL 300HV Professional
  • Carrying case with EPP foam
  • Target Plate
  • Laser goggles
  • Laser receiver LR 1 Professional
  • Remote control RC 1 Professional
  • Wall mount WM 4 Professional
  • Alkaline batteries 2 x 1.5 v LR 20 (D)
  • Bracket
  • Compartment for Alkaline batteries
