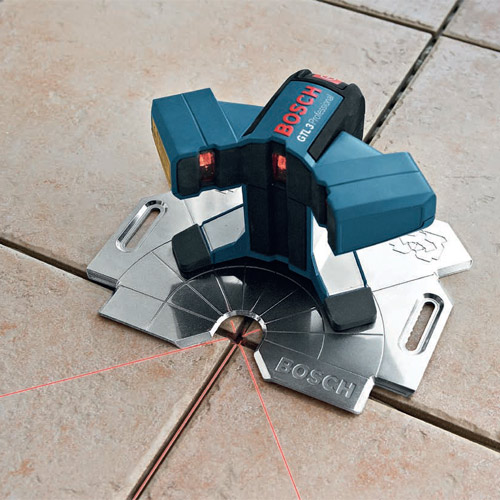

The Bosch Floor Tile Laser Level GTL 3 is an ideal tool for laying all floor tiles. The Bosch GTL3 as the name suggests is the only tile laser level on the market to project a third line in the 45° direction in addition to the two standard right-angled lasers. This makes not only parallel laying but also diagonal laying of the tiles very easy and quick. The Bosch GTL 3 Professional Tile Laser can also be used for many other jobs such as wallpapering, board
Working Range with Target Plate 20m
Projects three laser lines for easy parallel and diagonal laying
With its 45 degree line, laying tiles has never been this fast or easy
Projection and leveling accuracy of +/- 0.2mm @ 1m
Lightweight and compact design, and single-button operation
Simple to use with its one button and LED battery indicator
Secure: Features strong magnets on the bottom of laser tool to provide secure attachment on included positioning plate and other ferrous metal surfacesing, and when laying stones
Key Features of Bosch GTL 3 Professional Tile Laser Level Device
Clearly visible lasers
The lasers on the Bosch GTL3 new tile laser level are clearly visible thanks to the new strong focusing optical components designed by Bosch. The range when used with the target plate includined is upto 20 meters. The laser line accuracy of 0.2 millimeters per meter makes the Bosch GTL 3 the best tile laser in its class.
Designed for the job
More convenient working is ensured by the lightweight and compact design, and the single-button operation. Two magnetic feet make it easier to fit the tool on a wall or floor using the metal plate that is supplied as standard. The tool is robust and also dust and splash-protected to IP 54. It remains fully functional after being dropped from a height of one meter.
Specifications of Bosch GTL 3 Tile Laser Level
Working range with target plate
20m
Angular accuracy
±0.2mm/m
Projection
3 lines
Laser diode / class
635 nm, < 1 mW / 2
Operating time, max.
18 h in 2-line mode 12 h in 3-line mode
Dust and splash protection
IP54
Batteries
4 x 1.5 V LR6 (AA)
Weight
440g
Operating temperature
-10 – 50°C
Storage temperature
-20 – 70°C
Warranty
One Year Warranty

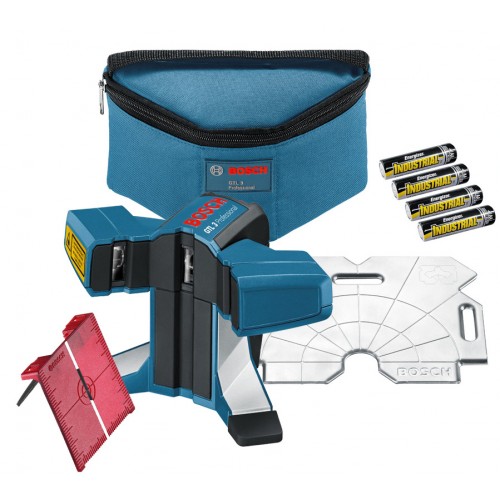

Bosch GTL 3 Scope of delivery:
Bosch GTL 3
Laser Target Plate
Carrying Pouch
Alignment Disc
4 x AA Alkaline Batteries
User Manual
Video of Bosch GTL 3 Professional Tile Laser Level
