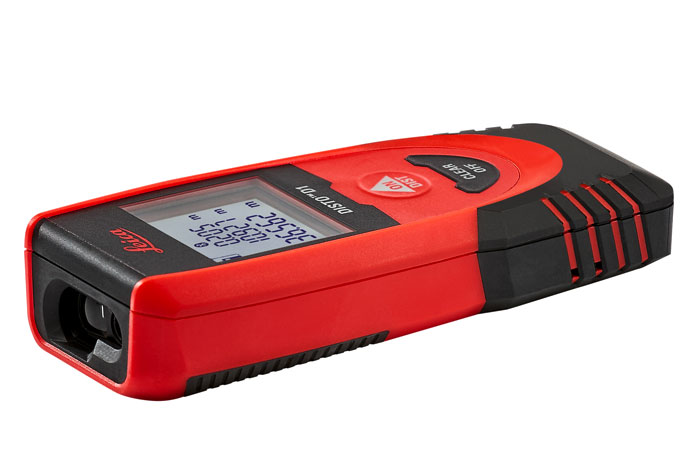

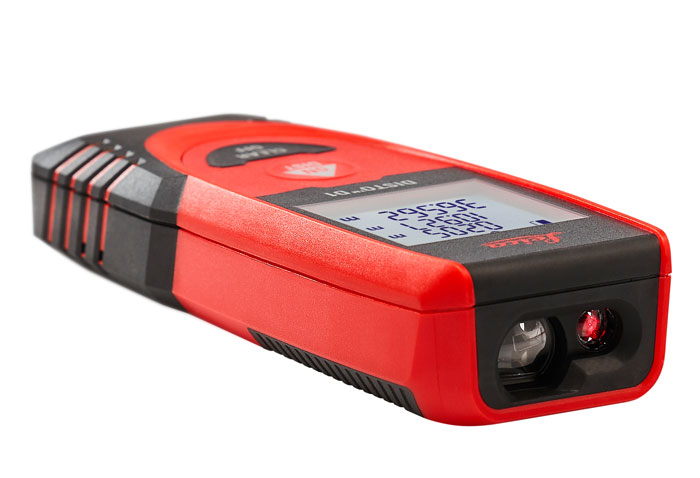

Leica Disto D1 – 40m Range

Leica Disto D1 – 40m Range

SKU: 843418 Category: Laser Distance Meters

At the touch of a button the Leica DISTO D1 measures heights, distances as well as niches quickly and reliably. Complicated or dangerous measurement situations, where ladders may be necessary, are now in the past. The functionality of the DISTO™ D1 can be extended with the Leica DISTO™ sketch app. With this app you can transfer measuring results to smart phones or tablets, process and forward them.

  • Measuring Range: 0.2m – 40m
  • Measuring Accuracy ± 2mm (ISO 16331-1 certified)
  • Bluetooth® Smart for data transfer to smart phones and tablets
  • IP54 dust and splash water protected
  • X-Range Power Technology
  • Quick, simple distance and area measurement
  • FREE Leica DISTO Sketch app
Description

Key Features of Leica Disto D1 Laser Measuring Device

  • The compact, easy-to-use Leica DISTO D1 demonstrates the experience of many years and the quality from Leica Geosystems, the leading manufacturer of measuring devices. Using laser technology the device measures distances up to 40 m thereby surpassing conventional measuring methods with measuring tape and yardstick. The functionality can be enhanced with the free DISTO™ sketch app. Using this, measurements are able to be transferred to smartphones or tablets, processed and forwarded.
Measure with laser precision
  • At the touch of a button the Leica DISTO™ D1 measures precisely and reliably even over longer distances. It is easy to operate and can hit targets which are not directly accessible.
Just precise
  • One measurement is sufficient and the result can be easily read off the clearly arranged display. Adding subtotals, e.g. when measuring a niche, is no longer necessary.
Perfect documentation
  • With just a few clicks, the Leica DISTO D1 can be connected with the DISTO™ sketch app. Create sketches or photos and dimension them with the measurement results, which are transferred directly to your smart phone or tablet. Plans are even automatically completed with areas and circumferences.
Quality from the Pioneer
  • The compact, easy-to-use Leica DISTO™ D1 demonstrates the experience of many years and the quality from Leica Geosystems, the leading manufacturer of measuring devices.
Easy data transfer to Leica DISTO™ sketch app with Bluetooth® Smart technology
  • Using the improved app DISTO™ sketch, layouts and sketches as well as photos can be digitally created and documented with the precise measuring data of the Leica DISTO D1 Laser Distance Meter. At the same time layouts are completed with areas and perimeters. The documents created can easily be sent via e-mail or saved to smartphones and tablets. Thus expensive errors due to inaccurate sketches, transfer errors and misunderstandings are ruled out.
Proven accuracy from Leica Geosystems
  • With the Leica DISTO D1 you simply point and click and the measurement is provided – guaranteed to be accurate to ±2mm! Leica are the only laser measure manufacturer in the world to test and certify their laser measures to the ISO 16331-1 standard for accuracy of hand held laser measures.
Specifications of Leica Disto D1 Laser Distance Meter
Minimum Measurement 0.2m / 0.65ft
Maximum Measuring Range 40m / 131ft
Measuring Accuracy ±2mm (ISO 16331-1 certified)
Measuring Units m, ft, in
X-Range Power Technology Yes
Free software for Windows Yes
Free App iOS / Android
Data interface Bluetooth® SMART
Measurements per set of batteries up to 10,000 Measurements Reduced in Bluetooth® mode
Service life of battery up to 20 hours Reduced in Bluetooth® mode
Batteries type AAA 2 × 1.5 V
Protection class IP54
Dimension 115 x 43.5 x 23.5 mm
Weight with batteries 87g
Laser Class 2
Warranty Full Three-Year Replacement Warranty.
Country of Origin Hungary
