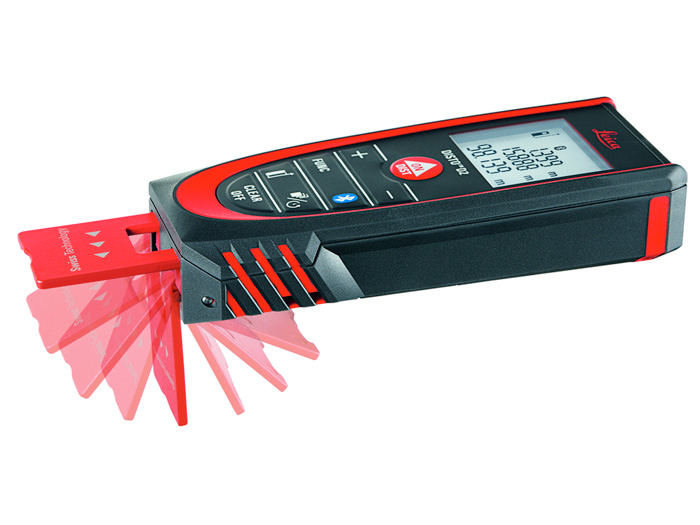

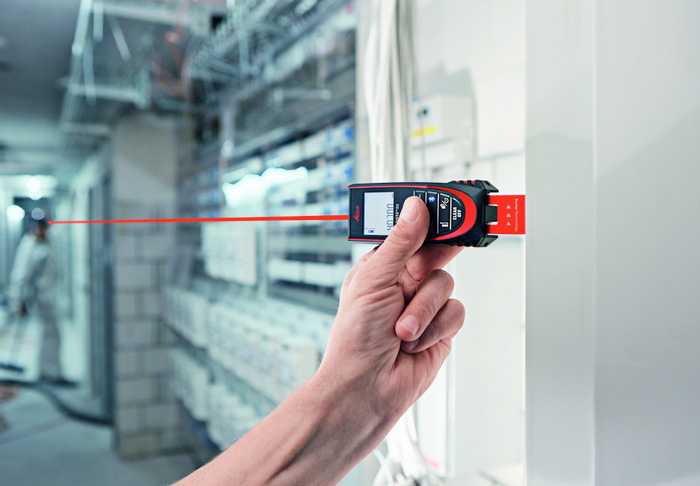

The new Leica DISTO D2 laser measuring meter is very compact but still powerful. It enables measurements up to 100m at highest precision. A great set of functions like the well-established foldable end-piece with automatic recognition of its position makes the DISTO™ D2 very versatile for many applications. With Bluetooth® Smart it is easy to generate professional documentation which makes communication of your measured data to others very clear and easy understandable.
| Minimum Measurement | 0.05m / 0.16ft |
| Maximum Measuring Range | 100m / 330ft |
| Measuring Accuracy | ±1.5mm (ISO 16331-1 certified) |
| Measuring Units | 0.1mm / 1/32in |
| Measuring Units | m, ft, in |
| X-Range Power Technology | Yes |
| Memory | 10 Points |
| Time delay release (Timer) | Yes |
| Display Illumination | Yes |
| Free software for Windows | Yes |
| Free App | iOS / Android |
| Data interface | Bluetooth® SMART |
| Measurements per set of batteries | up to 10,000 Measurements Reduced in Bluetooth® mode |
| Service life of battery | up to 20 hours Reduced in Bluetooth® mode |
| Multifunctional end-piece | Yes |
| Batteries | type AAA 2 × 1.5 V |
| Protection class | IP54 dust and splash water protected |
| Dimension | 116 x 44 x 26 mm |
| Weight with batteries | 100g |
| Laser Class | 2 |
| Warranty | Full Three-Year Replacement Warranty. |
| Country of Origin | Hungary |
| Distance measuring | Yes |
| Min/Max measuring | Yes |
| Permanent measuring | Yes |
| Stake out | Yes |
| Addition/Subtraction | Yes |
| Area | Yes |
| Volume | Yes |
| Painter function (area with partial measurem.) | Yes |
| Pythagoras | Yes, 2-point, 3-point |
This is a message code. The numbers are displayed if a successful measurement could not be performed. The user can correct the measuring situation to achieve a measurement. Below you can find the spread sheet from the manual with the corrections:
| Error No. | Cause | Correction |
|---|---|---|
| 204 | Calculation error | Perform measurement again. |
| 240 | Data transfer error | Repeat procedure |
| 252 | Temperature too high | Let device cool down. |
| 253 | Temperature too low | Warm device up. |
| 254 | Battery voltage too low for measurements | Change batteries |
| 255 | Received signal too weak, measuring time too long | Change target surface (e.g. white paper). |
| 256 | Received signal too high | Change target surface (e.g. white paper). |
| 257 | Too much background light | Shadow target area. |
| 258 | Measurement outside of measuring range | Correct range. |
| 260 | Laser beam interrupted | Repeat measurement. |
The beep can be switched off (and on) with a long press simultaneously on Func key and Bluetooth key.
The painter function calculates the sum of several individual wall surfaces with a common height. Press func key 1x to go to the area function.
Press DIST key and measure the first wall length, press plus or -minus key again and measure the next wall length. The distance is automatically calculated. Repeat the procedure, until you have measured all wall lengths.
2nd measurement: Measure the wall height. The result displays automatically the wall areas, which you have selected.
In any rectangular triangle, the theorem of Pythagoras is valid: a²+b²=c². This means the other way round: c=radical of (a²+b²) or b=radical of (c²-a²). One side of the triangle can be calculated, if the other two sides are known. Therefore it is important that the DISTO™ measuring points are at the same level and that measurement 2 is rectangular. With a long press on the DIST-key the minimum function can be activated to get the shortest distance for measurement 2.
Yes, it is possible to use with standard rechargeable batteries. The more powerful the charger system is, the longer you can measure with the Leica DISTO™. We offer a powerful charger system, which is ideal to use with DISTO™: Leica charger UC20 with 2 Micro AAA NiMH batteries. For more information, please check our accessories.
For measuring of long distances we recommend to use our Leica target plates. If the laser dot is not visible, we recommend you to wear laser glasses (GLB30).
Our standard warranty of 2 years can be extended by one additional year if you register your device on our website http://www.disto.com/ within eight weeks of the purchase date. If the product is not registered, a two year warranty applies.
When products and services meet our expectations, we tend to take this for granted and be unaware of the role of standards. However, when standards are absent, we soon notice. We soon care when products turn out to be of poor quality or are unreliable or dangerous. An ISO Standard ensures consistent quality and reliability for a product.
The range and accuracy of laser distance meters depend greatly on lighting conditions and the reflective properties of the target object. For Leica Geosystems it is important that the performance of the device is maintained not only in the test laboratory but even more so on everyday site tasks. Therefore we have worked with external experts to develop a global standard to test and specify laser distance meters and allow comparisons between devices of different manufacturers. Instruments tested in accordance with ISO 16331-1 achieve their promises. Further information can be found on our website: www.disto.com.
By pressing the Bluetooth® key for 2 seconds.
The Leica DISTO™ D2 has Bluetooth® SMART. The devices is working with smartphones or tablets with Bluetooth® 4.0, or are “Smart Ready”. It is also required that the operating system supports this Bluetooth® standard which is the case for iOS devices, Android devices 4.3 or higher, and Windows 8.0 or higher.
Yes, the Leica DISTO™ D2 can communicate with iOS mobile devices. It’s possible to send measuring data to an iPhone (iPhone 4S, iPhone 5, iPhone 5s, iPhone 5c), iPad3, iPad 4, iPad mini, iPod touch (Gen. 5). (–> Bluetooth® 4.0)
Yes, the Leica DISTO™ D2 can communicate also with Android devices, with operating system 4.3 or higher, and which have integrated Bluetooth 4.0. Used apps should support the corresponding Bluetooth® standard (e.g. Leica DISTO™ sketch).
It is possible to send data to computers running with Windows 8.1 by using the free software DISTO transfer. This free software you can download from our DISTO webpage. Windows 7 and older Windows operating systems do not support Bluetooth 4.0 and therefore do not support data transfer from the Leica DISTO™ D2.
No, this is not possible.
Yes. We offer the Leica DISTO™ sketch app. The app is available free of charge for iOS devices on iTunes, and for Android devices on Google play.
