The Leica DISTO D510 combo case – the professional package for convenient aiming and precise measurement. It consists of the Leica DISTO™ D510, the Leica FTA360 adapter and the Leica tripod TRI70. The instrument and accessories come in an attractive, robust case.
Measuring Range: 0.05m – 200m both indoors and outdoors
Measuring Accuracy ± 1mm (ISO 16331-1 certified)
Digital Pointfinder / Viewfinder with 4x zoom
IP65 – 100% water jet protection and dust-tight
Power Range Technology
Measuring Units m, in, ft & 50 Points Memory

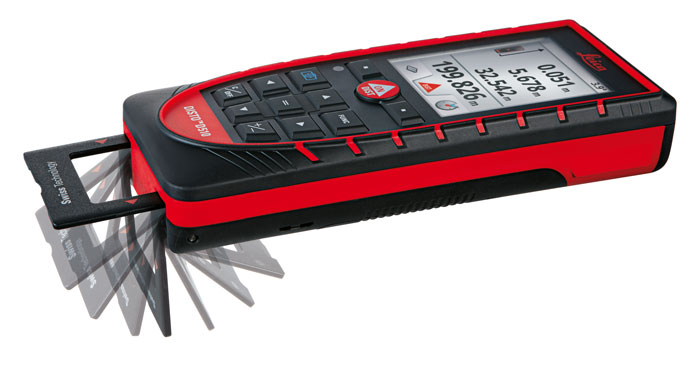

Automatic multi-functional end piece for measuring from corners
Fine adjustment of the laser dot at the target point by using the Leica FTA 360 adapter
Precise aiming and measuring on small objects and large distances
Complete package in a robust and functional carrying case
Each product and accessory is visible in the case, so nothing will be lost or forgotten
The new Leica DISTO D510 case – the professional package for convenient aiming and precise measurement. It consists of the Leica DISTO™ D510, the Leica FTA360 adapter and the Leica tripod TRI70.

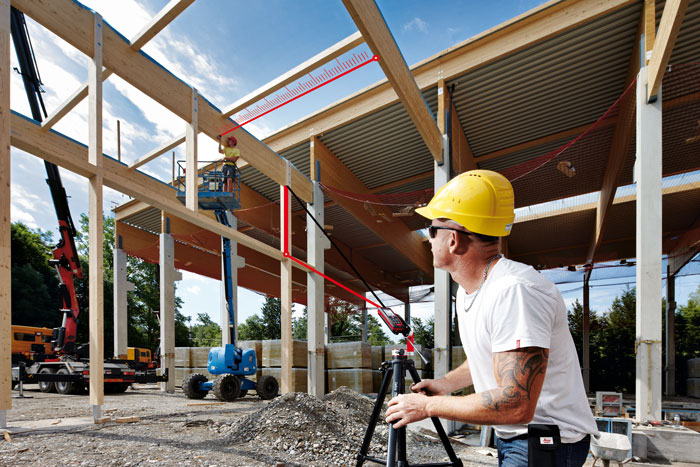

Precise measuring over long distances requires a stable set-up of the laser distance meter. It is often difficult to fine adjust the laser dot at the target point by holding the device to a solid reference. We have addressed this challenge with this professional package.

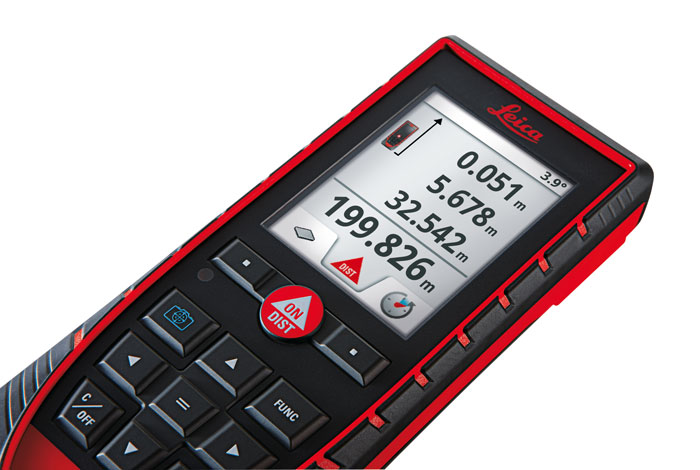

The Leica DISTO D510 laser distance meter with its digital Pointfinder is the right choice for outdoor use on construction sites. Designed for job site use, the DISTO™ D510 meets tough dust and waterproof requirements. Construction professionals benefit from improved workflows for project documentation and wireless data exchange with its latest Bluetooth Smart technology.
Leica DISTO D510 performs the specified measuring accuracy and range under job site conditions. Confirmed by ISO 16331-1 certification – we keep our promise.

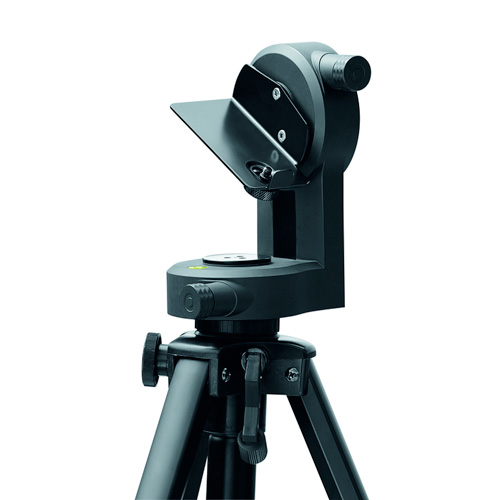

The Leica FTA360 adapter features an easy fine adjustment system for convenient and accurate aiming and fits perfectly to the Leica tripod TRI70. Together with the FTA360 adapter the Leica DISTO D510 touch becomes a highly precise measuring system.
Leica Disto D510 Package Contents : Scope of Delivery
Leica DISTO™ D510 laser distance meter
Holster
Hand loop
Leica FTA360 tripod adapter
Leica TRI 70 tripod
Leica robust carrying case
2x AA batteries
Calibration Certificate
Quick Start Guide
Manual / safety instructions on CD
Specifications of Leica Disto D510 Laser Distance Meter
Minimum Measurement
0.05m / 0.16ft
Maximum Measuring Range
200m / 660ft
Measuring Accuracy
±1mm (ISO 16331-1 certified)
Measuring Units
m, ft, in
Power Range Technology
Yes
Tilt sensor measuring range
360°
Accuracy to the laser beam
± 0.2°
Accuracy to the housing
± 0.2°
Units in the tilt sensor
0.0°, 0.00% 0.0°, 0.00%
Pointfinder with 4x zoom
Yes
Memory
30 Points Memory
Time delay release (timer)
Yes
Display Illumination
Yes
Free App
iOS / Android
Data interface
Bluetooth® SMART
Measurements per set of batteries
up to 5,000 Measurements Reduced in Bluetooth® mode
Service life of battery
up to 10 hours Reduced in Bluetooth® mode
Multifunctional end-piece
Yes
Tripod thread
Yes
Batteries
type AA 2 × 1.5 V
Protection class
IP65
Dimension
143 × 58 × 29 mm
Weight with batteries
198g
Laser Class
2
Warranty
Full Three-Year Replacement Warranty.
Country of Origin
Hungary
Functions of Leica Laser Distance Meter Disto D510
Distance measuring
Yes
Min/Max measuring
Yes
Permanent measuring
Yes
Stake out
Yes
Addition/Subtraction
Yes
Area
Yes
Triangle area
Yes
Volume
Yes
Trapezium
Yes
Painter function (area with partial measurement)
Yes
Pythagoras
Yes, 2-point, 3-point
Smart Horizontal Mode / Indirect height
Yes
Height-profile measurement
Yes
Inclination tracking
Yes
Sloped objects
Yes
Height tracking
Yes
Illuminated colour display
Yes
Digital Level
Yes
Personalized Favorites
Yes
Long Range Mode
Yes
Calculator
Yes
Videos of Leica Disto D510 Laser Distance Meter
