Leica Disto S910 – 300m Range

Leica Disto S910 – 300m Range

SKU: 805080 Category: Laser Distance Meters

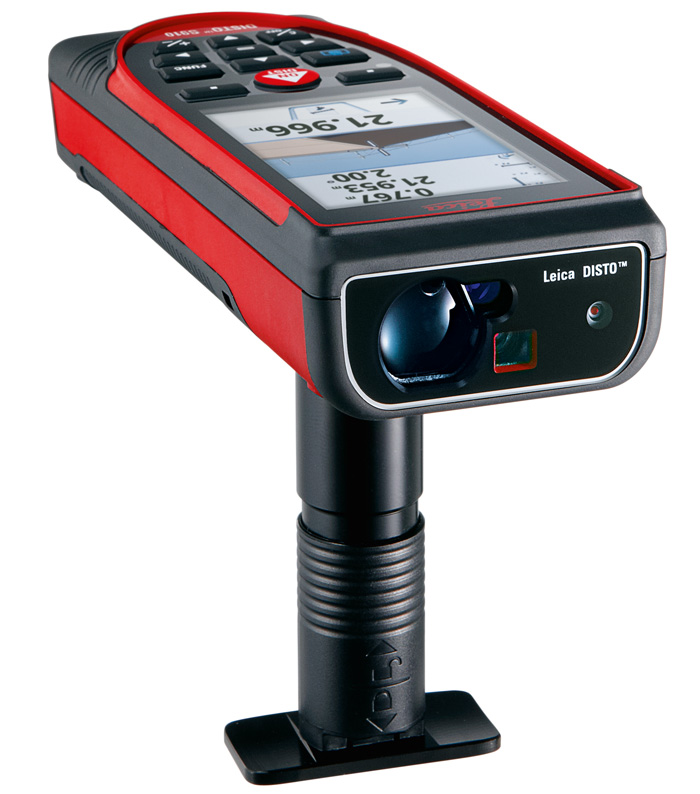

The Leica DISTO S910 is worldwide the first laser distance meter with the revolutionary P2P Technology. Measure fast and easily distances between any two points from one location. The measurement results can be transferred instantly to PC’s via WLAN. Alternatively the results can be saved on the device as DXF data and downloaded later with the USB interface for use in CAD software. This shortens the workflow and saves valuable time.

  • Measuring Range: 0.05m – 300m both indoors and outdoors
  • Measuring Accuracy ± 1mm (ISO 16331-1 certified)
  • Digital Pointfinder / Viewfinder with 4x zoom, Overview camera
  • Precise 360° tilt sensor & 360° smartbase horizontal sensor
  • Integrated Smart Base for P2P Technology
  • X-Range Power Technology for highest measurement performance
  • Bluetooth® Smart for data transfer to iPad, iPhone, Windows and Android
  • WLAN & USB data transfer to mobile devices and computers
  • Capture measurement data in DXF format
  • IP54 dust and splash water protected
  • 3.2″ Large illuminated coloured touchscreen display
  • Smart area, smart angle functions and point data transmission
  • Rechargeable Li-Ion battery, FREE Leica DISTO Sketch app
Description

Key Features of Leica Disto S910 touch Laser Measurer

The Leica DISTO™ S910 is the world’s first laser distance meter with the revolutionary P2P Technology providing substantial application benefits to solve complex measuring tasks. Without any surveying knowledge create realistic object visualizations and high levels of fast and accurate documentation. Transfer measurement instantly to PC’s, smartphones and tablets via WLAN or Bluetooth® Smart technology. Alternatively save the results and pictures on the device as DXF data and download later with the USB interface for use in CAD software. The fully digitalized workflow saves valuable time.

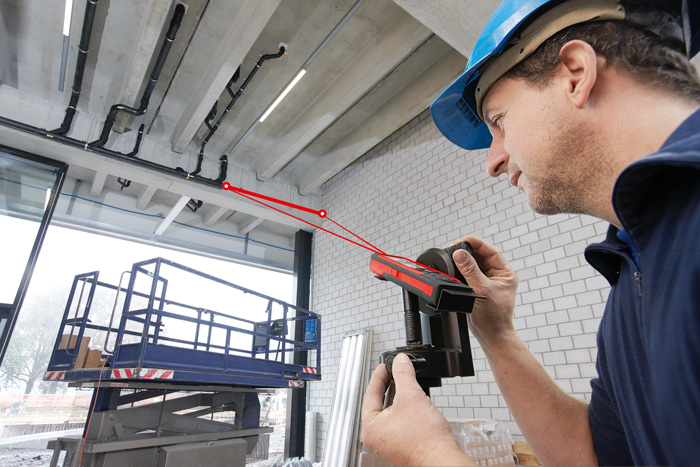

Measure from point to point with P2P Technology

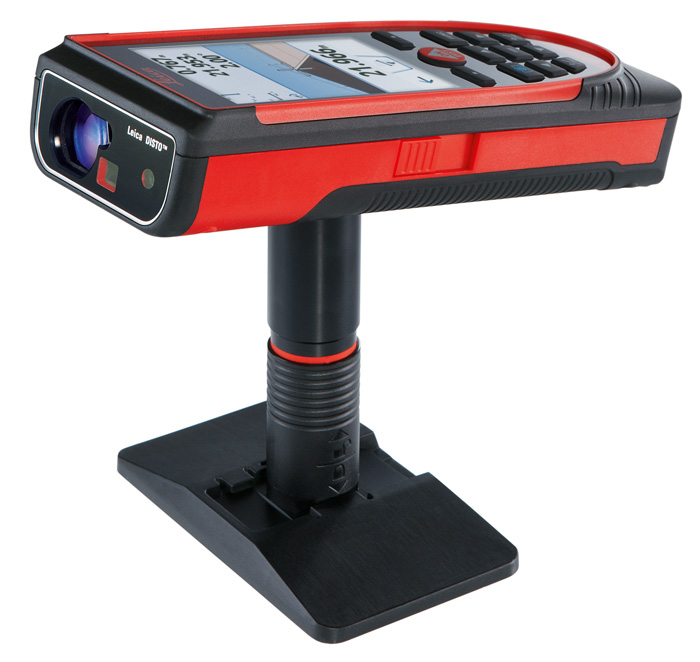

  • The integrated Smart Base enables to measure distances (e.g. widths and tie distances) between any two points, angles and inclinations at the same time from one location. Thus, you’ll never have to reach for inaccessible areas again, enabling even the most complex measurement task to be quickly, accurately, and safely carried out.
Capture measurement data in CAD format
  • Another world’s first! The Leica Laser Distance Meter DISTO S910 can save all the measured points into a DXF file, as a floor plan, wall layout or even as 3D data, which can be downloaded later in the office to a PC via the USB interface. To provide you with complete and reliable documentation, the Leica Disto Meter S910 also stores all the pictures showing where you measured to. This simplifies the task of creating more accurate drawings, or smoothes the process of quality checks.

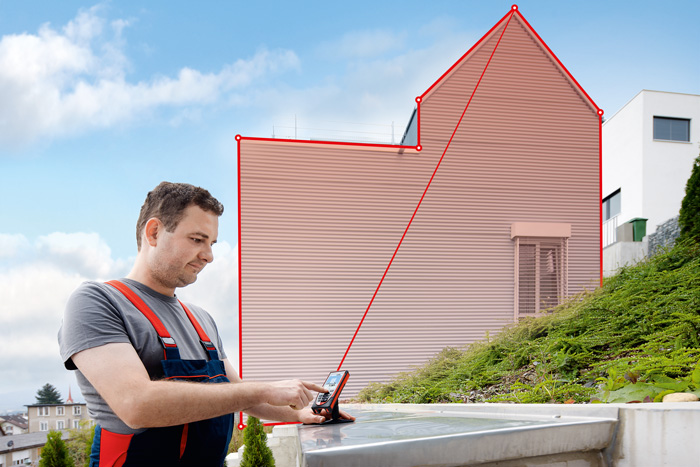

Smart Area Function
  • Measure any area on walls, floors or even inclined areas like on roofs by just simply measure the corner points. The area and the perimeter will be displayed after the measuring has been performed.
Smart Angle Function
  • Measure any angle by just measuring three points. No matter how the angle is positioned, by just measuring the points the angle will be calculated and displayed.
Real-time transfer of point data
  • Measurement data can be transferred directly on site over the WLAN interface to a portable computer to be further processed in your preferred software. Establishing the connection is extremely easy – similar to a hotspot. You can transfer as many measurement points as you like – with or without pictures – and create or check documentation in real-time. The free Leica DISTO™ transfer with Plugin software also supports the transfer of your results into AutoCAD® and BricsCAD®.
300 meter range with X-Range Power Technology
  • With the innovative X-Range Power Technology on board, the Leica DISTO S910 Laser Rangefinder represents the measuring technology of the future. It achieves ranges of up to 300 m and guarantees the best measuring performance, i.e. quick and reliable measurements, even to poorly reflecting objects or in bright sunshine. The range and accuracy are tested in accordance with ISO 16331-1. Consequently, the Leica DISTO S910 Laser Measurer keeps its promises.
Optional Smart accessory for highest precision – Tripod adapter FTA360-S with fine drive
  • The robust tripod adapter FTA360-S with fine drive guarantees a convenient and precise targeting with the Leica DISTO S910 Distancemeter. The adapter eases the task of targeting over long distances and increases the accuracy when taking indirect measurements.
Specifications of Leica Disto S910 P2P Laser Distance Meter
Minimum Measurement 0.05m / 0.16ft
Maximum Measuring Range 300m / 1000ft
Measuring Accuracy ±1mm (ISO 16331-1 certified)
Measuring Units m, ft, in
Power Range Technology Yes
Tilt sensor measuring range 360°
Accuracy to the laser beam – 0.1° / + 0.2°
Accuracy to the housing ± 0.1°
Units in the tilt sensor 0.0°, 0.00%
mm / m, in / ft
Smart Base measuring range
Horizontal 360°
Vertical – 40° to 80°
Distance in m
Typical tolerance of the P2P function
2, 5, 10m
2, 5, 10mm
Levelling range ±5°
Levelling accuracy ±0.05°
Pointfinder with 4x zoom Yes
Overview camera Yes
Picture file format .jpg
Memory 50 Points Memory
Memory for pictures 80 Photos
CAD data format .dxf
Memory for CAD files 20 files, each with 30 points
Time delay release (timer) Yes
Display Illumination Yes
Free software for Windows Yes
Free App iOS / Android
Data interface Bluetooth® SMART, WLAN
Measurements per set of batteries up to 4,000 Measurements Reduced in Bluetooth® mode
Service life of battery up to 8 hours Reduced in Bluetooth® mode
Multifunctional end-piece Yes
Tripod thread Smart Base
Batteries Li-ion rechargeable
Charging time 4 Hours
Protection class IP54
Dimension 164 × 61 × 32 mm
Weight with batteries 290g
Laser Class 2
Warranty Full Three-Year Replacement Warranty.
Country of Origin Austria
Functions of Leica Laser Measuring Meter Disto S910
Distance measuring Yes
Min/Max measuring Yes
Permanent measuring Yes
Stake out Yes
Addition/Subtraction Yes
Area Yes
Triangle area Yes
Volume Yes
Trapezium Yes
Painter function (area with partial measurement) Yes
Pythagoras Yes, 2-point, 3-point
Smart Horizontal Mode / Indirect height Yes
Height-profile measurement Yes
Level Yes
Sloped objects Yes
Height tracking Yes
Illuminated colour display Yes
Personalized Favorites Yes
Personalized Favorites Yes
Calculator Yes
Photo/Screenshot Yes
Compass Yes
Gallery with USB download Yes
Diameter Yes
Width Yes
Area from Photo Yes
Smart Base Yes
Pointdata transmission Yes
Point to point function / distance Yes
Smart Angle Yes
Smart Area Yes
DXF Data capture Yes
