The Leica DISTO X4 is equipped with a Pointfinder camera allowing you to easily target distant objects in bright sunlight. Even if the laser dot cannot be seen, the target appears clearly on the large colour display. The high-resolution screen ensures a crystalclear image. Distance measurements are absolutely precise over long distances.
Measuring Range: 0.05m – 150m both indoors and outdoors, even in bright sunshine
Measuring Accuracy ± 1 mm (ISO 16331-1 certified)
Digital Pointfinder / Viewfinder with 4x zoom
IP65 – 100% water jet protection and dust-tight
X-Range Power Technology
Measuring Units m, in, ft & 20 Points Memory

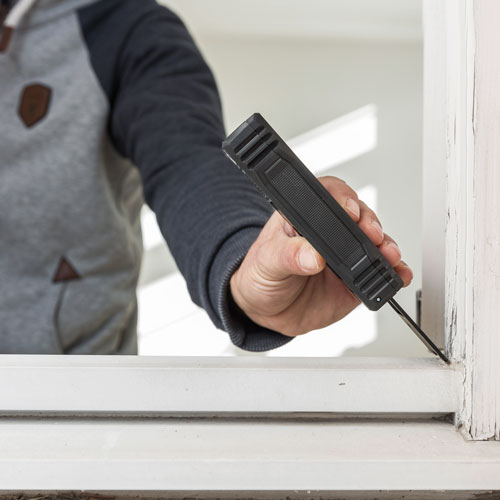

Automatic multi-functional end piece for measuring from corners
Large 2″ colour display screen
P2P technology – distance and area measurements from one position – *DST 360 adapter required
Leica DISTO™ Plan – smart measurement documentation
Key Features of Leica DISTO™ X4 offers “Reliable Outdoor Functionality”!
The new Leica DISTO X4 combine innovative distance measurement technologies with a site-proof design. These laser distance meters withstand drop tests from 2 meters and are dust- and water-protected to IP 65 standards. This makes them suitable for tough, everyday job site conditions. In combination with the Leica DST 360 adapter these laser distance meters allow for Point-to-Point measurements and all measured data is easily documented and visualized with the Leica DISTO™ Plan app.
Tough

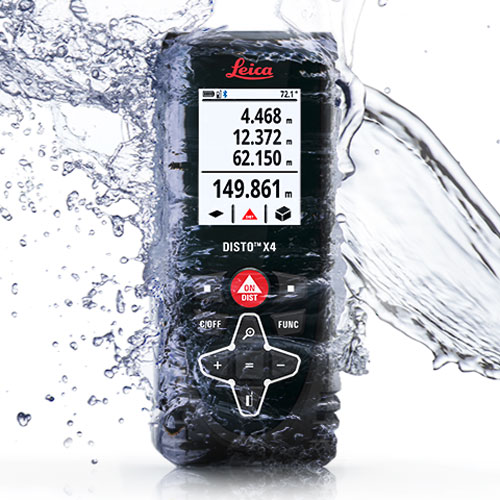

The casing and keypad are especially protected against dust and water to achieve the requirements of IP 65 protection. This means that the Lecia Disto X4 can be cleaned under running water. Special bracing made from fibreglass-reinforced plastic strengthens the device inside and solid rubber components protect the sensitive measuring elements against drop-damage. All these features make the X4 ideal for daily construction site work.

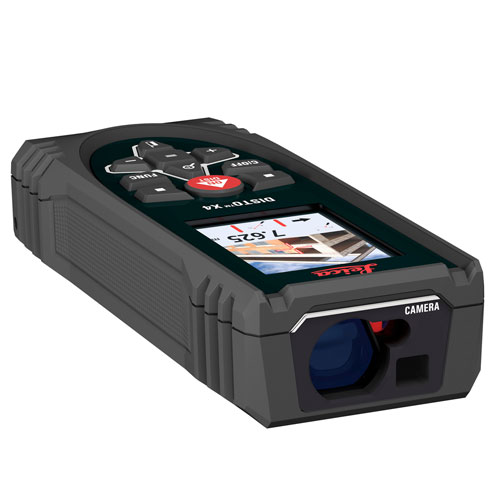

Pointfinder camera
The Leica DISTO X4 is equipped with a Pointfinder camera, allowing for easy targeting of distant objects in bright sunlight. The laser dot may not be visible but the target object displays clearly on the large, high-resolution colour display. This makes long distance measurements truly precise.

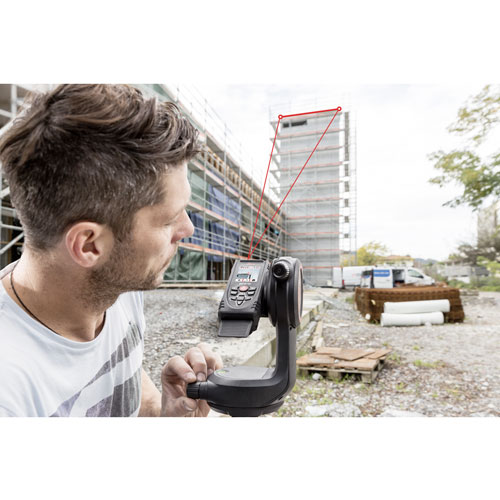

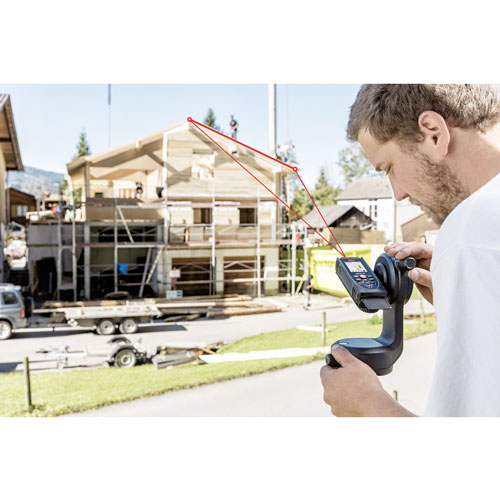

P2P technology – distance and area measurements from one position

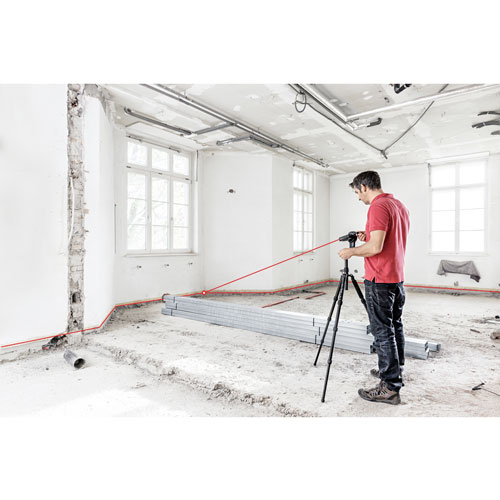

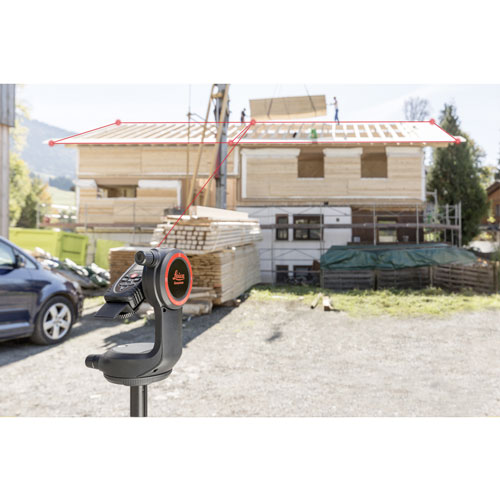

The DST 360 adapter is a great addition for the Leica DISTO™ X3 and Disto X4. It transforms the hand-held tool into a sturdy measurement station allowing for precise distance measurements between any two points. In combination with the Leica DISTO™ Plan app, floorplans are easily created and can be further processed in CAD.
Leica DISTO™ Plan – clever measurement documentation

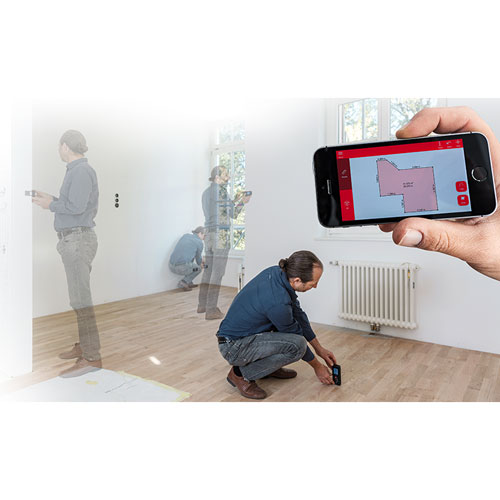

The new DISTO™ Plan app assists with the vital tasks of documenting and visualising measurements. Fingers can be used to sketch a floorplan on a smartphone or tablet and corresponding measurements are easily assigned to each line of the plan. The app then automatically creates a scaled floorplan. Alternatively, the innovative Smart Room functionality in combination with a newly integrated sensor in the Leica DISTO™ X3 and Disto X4 makes it possible to create accurate floor plans simply by taking clockwise or counter-clockwise measurements of a room.
All measurements and floorplans can be exported as a CAD drawing or in a PDF format. The new app supports all Leica DISTO™ devices with Bluetooth® functionality.
Specifications of Leica Disto X4 Laser Distance Meter
Minimum Measurement
0.05m / 0.16ft
Maximum Measuring Range
150m / 500ft
Measuring Accuracy
±1mm (ISO 16331-1 certified)
Measuring Units
m, ft, in
X-Range Power Technology
Yes
Tilt sensor
Yes
Tilt sensor accuracy to the housing
± 0.2°
Smart Base measuring range
Horizontal
Vertical
360° for use with Leica DST 360
-64° to > 90° for use with Leica DST 360
Typ. tolerance of the P2P function for use with Leica DST 360
±2mm at 2m, 5mm at 5m, 10mm at 10m
Levelling range
5° for use with Leica DST 360
Pointfinder with zoom
4x
Memory of last measurement
20
DISTO™ transfer for Windows
Yes
DISTO™ Plan app for iOS and Android
Yes
Smart Room function support
Yes
General data interface
Bluetooth® Smart
Data interface for 3D point data
Bluetooth® Smart
Measurements per set of batteries
up to 4,000 Measurements Reduced in Bluetooth® mode
Service life of battery
up to 8 hours Reduced in Bluetooth® mode
Multifunctional end-piece
Yes
Tripod thread
Yes
Batteries
type AA 2 × 1.5 V
Protection class
IP65
2m drop tested
Yes
Dimension
132 × 56 × 29 mm
Weight with batteries
188g
Laser Class
2
Warranty
Full Three-Year Replacement Warranty.
Country of Origin
Hungary
Functions of Leica Laser Distance Meter Disto X4
Distance measuring
Yes
Min/Max measuring
Yes
Permanent measuring
Yes
Stake out
Yes
Addition/Subtraction
Yes
Area
Yes
Room angle
Yes
Volume
Yes
Painter function (area with partial measurem.)
Yes
Pythagoras
Yes, 2-point, 3-point
Smart Horizontal Mode / Indirect height
Yes
Level
Yes
Memory
Yes
Sloped objects
Yes
Beep
Yes
Illuminated colour display
Yes
Bluetooth® Smart
Yes
Personalized Favorites
Yes
Timer
Yes
Point to point function/ distance
Yes
Height tracking
Yes
Smart Area
Yes
*In combination with Leica DST 360 adapter
