Leica Lino L2P5 Crossline & Point Laser Level

Leica Lino L2P5 Crossline & Point Laser Level

SKU: 864431 Category: Line & Point Lasers

The Leica Lino L2P5 point-line laser can do everything; it combines all the functions and advantages of the Leica Lino point and line lasers. In addition to the five laser points at right angles to one another, the tool creates a horizontal and vertical line or plane to allow your alignment and levelling work to be completed quickly and easily.

  • Working Range: Up to 25m* > 80 m with detector
  • Emergence angle of 180°
  • Exact 90° angle
  • Projection and leveling accuracy of ± 1.5mm @ 5m
  • Accuracy of plumb dots ± 1.5mm @ 5m
  • Self leveling function – The instrument levels itself in the range of ± 4°
  • IP54 dust and splash water protected
Enquire Now
Description
Key Features of Leica Lino L2P5 – The all-in-one cross line and point laser tool

The Leica Lino L2P5 point-line laser can do everything; it combines all the functions and advantages of the Leica Lino point and line lasers. In addition to the five laser points at right angles to one another, the tool creates a horizontal and vertical line or plane to allow your alignment and levelling work to be completed quickly and easily.


Cross Line And Point Laser

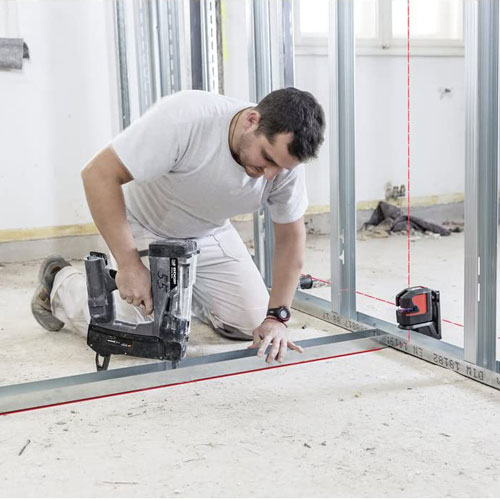

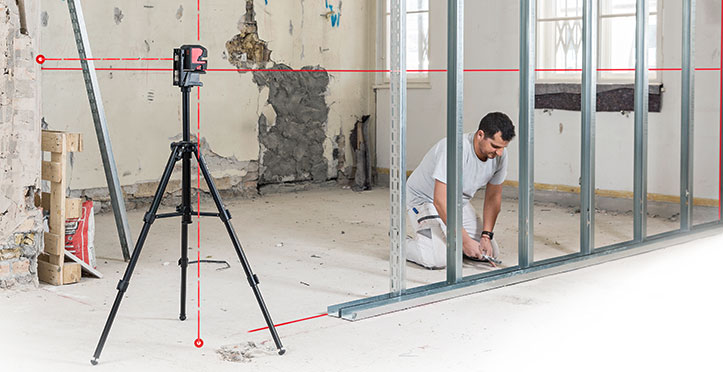

  • The Leica Lino L2P5 is a a self-levelling cross-line and point laser. This Lino is ideal for alignment tasks such as tiling, drywalling, partitioning and electrical installations as well as plumb point projection, setting out or transferring measured points.
Working Range
  • Leica optics enable the Lino L2P5 to project very bright and clearly visible laser lines and dots. Depending on the lighting conditions, the working range is up to 25 meters. This range can be easily extended up to 80 meters by using the laser receiver.
Magnetic Positioning
  • This two-in-one laser level has magnetic adapters which allow you to position the instrument quickly and with absolute precision. You can easily attach it within U-profiles, to edges, or any magnetic surfaces.
Self-Levelling

The Leica L2P5 is a self-levelling cross and line laser. This means it automatically adjusts its positioning up to ± 4° when slightly out of level without any manual alignment.


Continuous Power

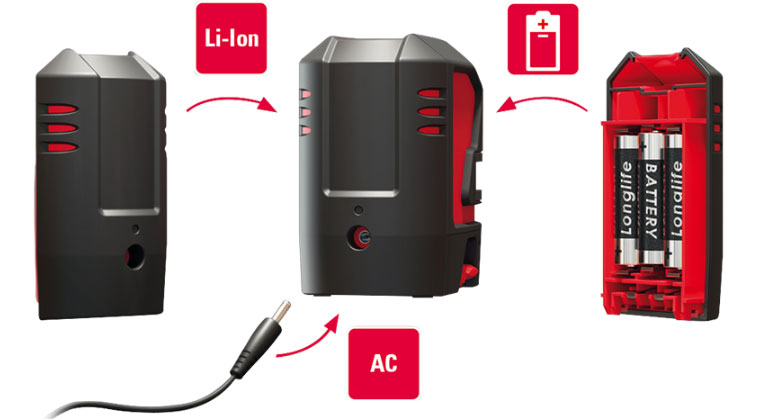

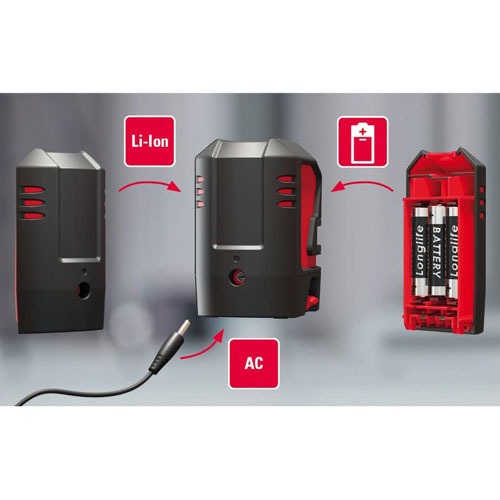

  • Your Leica Lino L2P5 laser has a triple power concept. It runs with Li-Ion batteries for up to 44 hours on one charge. It can also be powered by alkaline batteries or its charger.

Rugged Design

  • The Leica Lino L2P5 is designed and built to support today’s jobsite conditions. It is dust and spray water protected to IP 54 standards.

Extra long laser lines

  • The improved emergence angle ensures outstanding visibility and extension of the laser line for perfect levelling and alignment at long distances. It is possible, e.g., to transfer reference points from one wall to the next. Leave your spirit level and string in your tool box.
Leica Lino L2P5 – Multi-functionality perfected

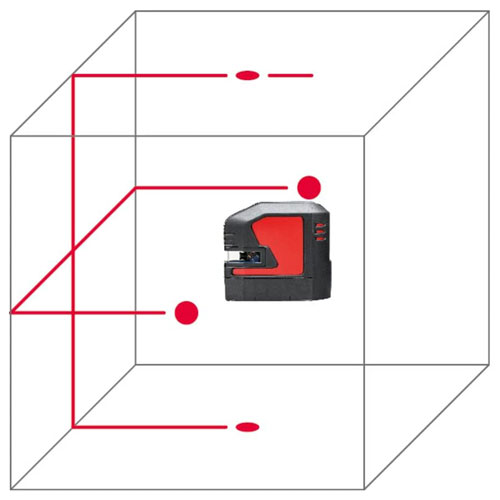

  • The Leica Lino L2P5 combines all the advantages of Leica Lino dot and line lasers. The five laser dots are precisely aligned at right angles to one another. The laser cross lines make alignment so simple.
Leica Lino L2P5 Laser Level Technical Specifications
Laser 2 lines (green)
Beam direction/fan angle Vertical / >170°, Horizontal / >180°
Range* 35 m (115 ft)
Range* with receiver 80 m (262 ft)
Levelling accuracy

±0.2 mm/m  or  ±1.0 mm @ 5m  or  ±2.0 mm @ 10m

±0.002 in/ft  or  ±0.04 in @ 16ft  or  ±0.08 in @ 33ft
Horizontal/Vertical line accuracy ±0.3 mm/m (±0.004 in/ft)
Self-levelling range ± 4 °
Self-levelling time < 3 s
Out-of-level warning Yes → blink lines every 5 s
Levelling system Automatic pendulum
Pendulum Lock Yes
Laser type 525 ± 5 nm, Class 2 acc. IEC 60825-1
Protection class IP 54 (IEC 60529) dust and splash water
Drop resistance 6 x 0.5 m (1.64 ft)
Battery type Lino Li-Ion battery pack 5200 mAh / 18.7 Wh
Operating time with Li-Ion battery 15h (2 beam) – 28h (1 beam) continuous
Operating time with alkaline batteries 4h (2 beam) – 7h (1 beam) continuous
Low power alert Status LED red
Automatic shut-off Available
Dimensions (L x W x H) 110 x 60 x 100 mm (4.33 x 2.36 x 3.93 in)
Weight with Li-Ion battery 530 g (1.17 lbs)
Operating temperature -10…+50 °C (+14…+122 °F)
Storage temperature -25…+70 °C (-13…+158 °F)
Temperature alert Status LED blinks red (5Hz)
Laser line width at 5m distance < 2 mm (<0.08 in)
Beam divergence < 1.5 mrad
Tripod thread 1/4’’ (+ 5/8’’ with adapter)
Pulse power for receiver Yes, auto
Size Info’s Case Single 1 pcs = 33.5 cm x 38 cm x 17 cm   Weight: 4.1 kg
Leica Lino L2G Scope of delivery:
  • Leica Lino L2G
  • Twist 250
  • UAL 130
  • Case
  • Li-Ion battery
  • Charger
  • Alkaline battery tray
  • Target Plate
Video of Leica Lino L2P5 Crossline Laser Level
