Leica Lino L2s Crossline Laser Level

Leica Lino L2s Crossline Laser Level

SKU: 848435 Category: Line & Point Lasers

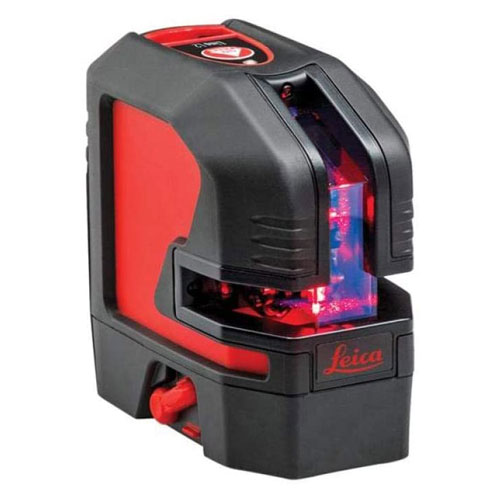

Leica Lino L2s – the cross line laser

The Leica Lino L2s cross line laser projects highly visible lines at right angles to one another. The time-consuming and tedious task of drawing lines on a wall is a thing of the past. The Leica Lino L2s features high accuracy of 1mm@5meters. With its multifunctional magnetic mini tripod, the Leica Lino L2s can be quickly set-up or attached to walls, shelves or profiles.

  • Working Range: Up to 25m* > 80 m with detector
  • Handy size – easy to fit in any professional toolbox
  • Soft grip components prevent slipping
  • Projection and leveling accuracy of +/- 1mm @ 5m
  • Self leveling function The instrument levels itself in the range of ± 4°
  • IP54 dust and splash water protected
Enquire Now
Description
Key Features of Leica Lino L2s – the cross line laser

The Leica Lino L2s cross line laser projects highly visible lines at right angles to one another. The time-consuming and tedious task of drawing lines on a wall is a thing of the past. The Leica Lino L2s features high accuracy of ±1mm@5meters. With its multi-functional magnetic adapter, the Leica Lino L2s can be quickly set-up or attached to walls, shelves or profiles.

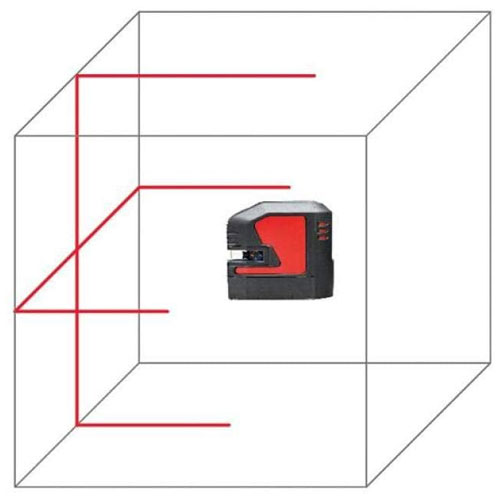

Exact and quick projection of horizontal and vertical lines

Self-levelling

  • The Leica Lino L2s Automatically Adjusts Its Positioning If It Is Slightly Out Of Level Up To ± 4°. Outside This Limit A Visual Alert Is Activated To Prevent Errors.

Smart Adapters

  • Smart Adapters Allow For Quick And Precise Positioning. You Can Set Up Rotatable Adapters Over Edges And Profiles, Or Easily Attach Them To Iron Pipes, Tracks And Bars.

Rugged Design

  • The Leica Lino L2s Is Dust And Spray Water Protected To Ip 54 Standards. This Makes It A Rugged Instrument Suitable For All Your Jobs.
Leica Lino L2s Laser Level Technical Specifications
Laser 2 lines (red)
Beam direction/fan angle Vertical / >170°, Horizontal / >180°
Range* 25 m (82 ft)
Range* with receiver 80 m (262 ft)
Levelling accuracy ±0.2 mm/m  or  ±1.0 mm @ 5m  or  ±2.0 mm @ 10m
±0.002 in/ft  or  ±0.04 in @ 16ft  or  ±0.08 in @ 33ft
Horizontal/Vertical line accuracy ±0.3 mm/m (±0.004 in/ft)
Self-levelling range ± 4 °
Self-levelling time < 3 s
Out-of-level warning Yes à laser lines blink every 5 s
Levelling system Automatic pendulum
Pendulum Lock Yes
Laser type 635 ± 5 nm, Class 2 acc. IEC 60825-1
Protection class IP 54 (IEC 60529) dust and splash water
Drop resistance 6 x 0.5 m (1.64 ft)
Battery type 3 alkaline AA
Operating time with alkaline battery 8h (2 beam) – 13h (1 beam) continuous
Low power alert Status LED red
Automatic shut-off Available
Dimensions (L x W x H) 110 x 60 x 100 mm (4.33 x 2.36 x 3.93 in)
Weight with Li-Ion/Alkaline battery 530/500 g (1.17/1.10 lbs)
Operating temperature -10…+50 °C (+14…+122 °F)
Storage temperature -25…+70 °C (-13…+158 °F)
Temperature alert Status LED blinks red (5Hz)
Laser line width at 5m distance < 2 mm (<0.08 in)
Beam divergence < 1.5 mrad
Tripod thread 1/4’’ (+ 5/8’’ with adapter)
Pulse power for receiver Yes, auto
Size Info’s Case Single 1 pcs = 33.5 cm x 38 cm x 17 cm   Weight: 3.7 kg
Size Info’s Box Single 1 pcs = 16.8 cm x 19 cm x 9.5 cm   Weight: 1.2 kg
Leica Lino L2PG Scope of delivery:
  • Leica Lino L2P5G
  • Twist 360 Adapter
  • UAL 130 Wall Mount Adapter
  • Case
  • Li-Ion battery
  • Charger
  • Alkaline battery tray
  • Target Plate
Video of Leica Lino L2P5G Crossline Laser Level
