Leica Lino P5 Point Laser Level

Leica Lino P5 Point Laser Level

SKU: 864427 Category: Line & Point Lasers

Leica Lino P5 – 5 point – Precise laser projection, right to the point

The Leica Lino P5 projects five laser beams, which are exactly at right angles to one another. This greatly simplifies setting out tasks and makes your interior fitting-out more precise and efficient. hree horizontally projected points are exactly the same height, ensuring setting-out is an easy task.

  • Working Range: Up to 30m
  • Handy size – easy to fit in any professional toolbox
  • Soft grip components prevent slipping
  • Leveling accuracy of +/- 1mm @ 5m
  • Practical multifunction adapter
  • Self leveling function The instrument levels itself in the range of ± 4°
  • IP54 dust and splash water protected
Enquire Now
Description
Key Features of Leica Lino P5 – 5 dot laser for easy and perfect plumbing

The Leica Lino P5 is excellent for plumbing up and down and transfers all the points you need, quickly and accurately. It features the Power Range Technology™, a magnetic multifunctional adapter and it’s self levelling.

One Button Operation

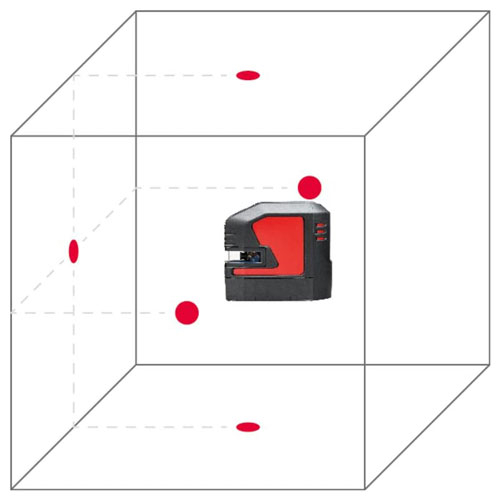

  • The Leica Lino P5 point laser is very easy to use. At the push of a button, it accurately projects five reference points at exact right angles to one another.

Triple Power Concept

  • The Leica Lino P5 Laser Has A Triple Power Concept. It Comes With Alkaline Batteries But It Can Be Operated With The Addition Of A Li-ion Battery Pack, Too.

Rugged Design

  • The Leica Lino P5 Is Dust And Spray Water Protected To Ip54 Standards. This Makes It A Tough Instrument Suitable For All Your Jobs.
  • Leica Lino P5 Projects Five Laser Beams, Which Are Exactly At Right Angles To One Another. This Greatly Simplifies Setting Out Tasks And Makes Your Interior Fitting-out More Precise And Efficient.

Self-levelling

  • It Is Not Necessary To Tediously Align The Device To Obtain Horizontal Or Vertical Lines. Minor Angular Misalignments Of ± 4° Are Compensated Automatically. If The Angular Misalignment Is Greater, The Device Does Not Project Any Lines. Errors Are Prevented!

Setting Out Right Angles

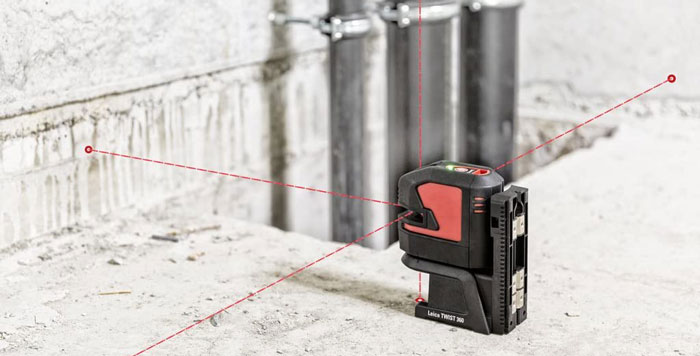

  • The Leica Lino P5 Has Five Laser Beams, Which Are Exactly At Right Angles To One Another. This Greatly Simplifies Setting Out Tasks And Makes Your Interior Fitting-out More Precise And Efficient.

Aligning

  • In Addition To The Plumb Beams, The Leica Lino P5 Projects Three Points At Exactly The Same Height. Aligning Windows, Partition Walls And Other Building Elements Becomes Quick And Easy.

Transferring Measured Points

  • Turn The Rotatable Adapter To Transfer Reference Points In No Time At All Across The Room From One Wall To Another. Leave Your Spirit Level And String Line In Your Toolbox!

Expanded Range Of Applications

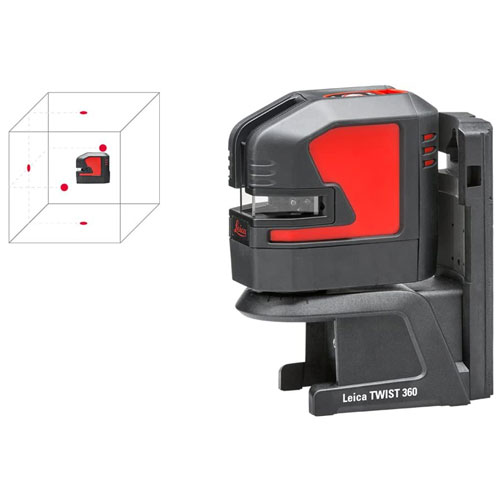

  • The Adapter Supplied With The Leica Lino P5 Positions The Instrument Quickly And With Absolute Precision. You Can Set Up The Adapter Over Edges And Profiles, Attach It To Circular Columns Or Fix It To Steel Or Iron Pipes With The Integrated Magnets.

Aligning Vertical Pipework

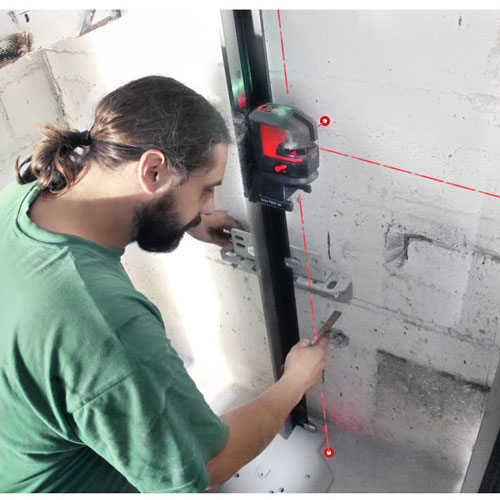

  • Leica Lino Is The Perfect Tool For Plumbing. The Laser Beam Is Projected Above And Below The Tool, Allowing You To Transfer Reference Points Quickly And Efficiently, E.g. From Floor To Ceiling. Pipework, Trunking And Other Fixtures Are Always Perfectly Plumb.
Leica Lino P5 Point Plumb Laser Level Technical Specifications
Laser 5 points (red)
Point direction Up, down, right, left, front (90°/180°)
Range* 30 m (98 ft)
Levelling accuracy ±0.2 mm/m  or  ±1.0 mm @ 5m  or  ±2.0 mm @ 10m
±0.002 in/ft  or  ±0.04 in @ 16ft  or  ±0.08 in @ 33ft
Point accuracy ±0.2 mm/m (±0.002 in/ft)
Self-levelling range ± 4 °
Self-levelling time < 3 s
Out-of-level warning Yes à blink lines every 5 s
Levelling system Automatic pendulum
Pendulum Lock Yes
Laser type 635 ± 5 nm, Class 2 acc. IEC 60825-1
Protection class IP 54 (IEC 60529) dust and splash water
Drop resistance 6 x 0.5 m (1.64 ft)
Battery type 3 alkaline AA (opt. Li-Ion battery pack 5200 mAh)
Operating time with Li-Ion battery 59h (5 point) – 100h (2 point) continuous
Operating time with alkaline batteries 25h (5 point) – 37h (2 point) continuous
Low power alert Status LED red
Automatic shut-off Available
Dimensions (L x W x H) 110 x 60 x 100 mm (4.33 x 2.36 x 3.93 in)
Weight with Li-Ion/Alkaline battery 535/495 g (1.17/1.11 lbs)
Operating temperature -10…+50 °C (+14…+122 °F)
Storage temperature -25…+70 °C (-13…+158 °F)
Temperature alert Status LED blinks red (5Hz)
Laser point diameter at 5m distance < 5 mm (<0.2 in)
Beam divergence < 1.5 mrad
Tripod thread 1/4’’ (+ 5/8’’ with adapter)
Pulse power for receiver Not available
Size Info’s Case Single 1 pcs = 33.5 cm x 38 cm x 17 cm   Weight: 3.7 kg
Leica Lino P5 Scope of delivery:
  • Leica Lino P5
  • Twist 360 Adapter
  • Case
  • Li-Ion battery
  • Charger
  • Alkaline battery tray
  • Target Plate
Video of Leica Lino P5 Crossline Laser Level
