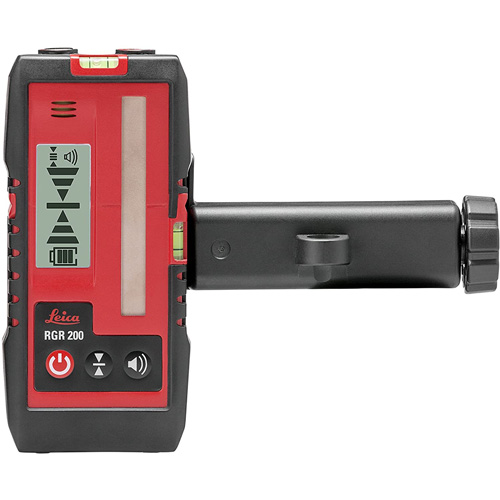

Leica RGR 200 Laser Receiver

Leica RGR 200 Laser Receiver

SKU: 866090 Category: Line & Point Lasers
Leica RGR 200 Laser Receiver – for extended working range for Red & Green Laser Level

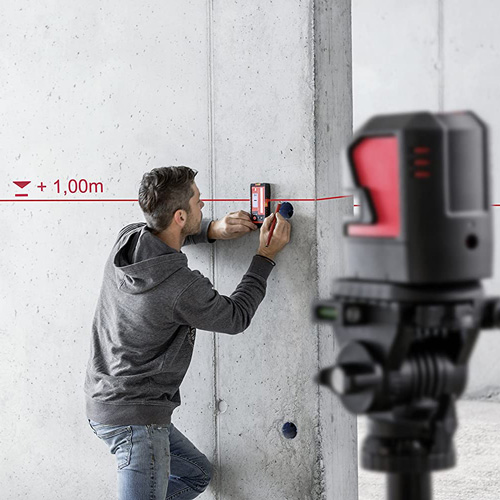

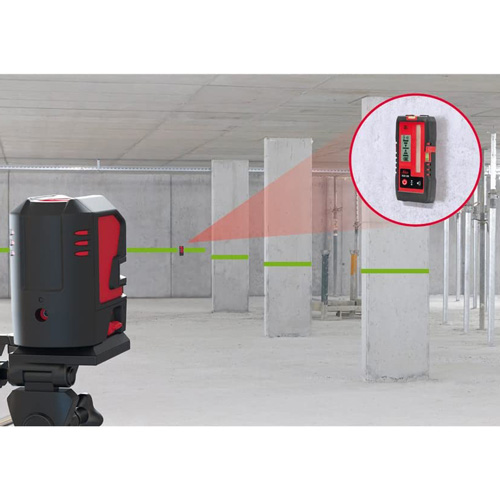

The Leica RGR 200 Laser Receiver increases the working range of line and rotation lasers, especially in bright conditions. Visual and audio signals help you to find the laser line or plane quickly and easily. This device can be utilised with most pulse style cross line lasers including the Leica Lino Lino L2s, L2, L2G, L2P5, L2P5G and L4P1. With a range of up to 80m, it also has a large reception window of 42 mm to find the laser beam quickly.

  • Works precisely with red and green Lino line lasers, 635 nm + 525 nm
  • Localizes the laser beam at a distance of up to 80m
  • Large reception window of 85 mm to find the laser beam quickly
  • Optical and acoustic signals help to find the laser plane
  • Receiver holder with quick adjustment feature for wider scope of use
  • Ergonomically designed display on the front and the back
  • IP 65 protected against dust and water.
Enquire Now
Description

Leica RGR 200 Laser Receiver – Works precisely with red and green Lino line lasers, 635 nm + 525 nm

The working range of line and rotation lasers, especially in bright conditions, can be increased with a laser receiver. Visual and audio signals help you to find the laser line or plane quickly and easily.

The Leica RGR200 Laser Receiver increases the working range of line and rotation lasers, especially in bright conditions. Visual and audio signals help you to find the laser line or plane quickly and easily. This device can be utilized with most pulse style cross line lasers including the Leica Lino Lino L2s, L2, L2G, L2P5, L2P5G and L4P1. With a range of up to 80m, it also has a large reception window of 85 mm to find the laser beam quickly.

  • For finding red pulsed laser beams over longer distances or in difficult light conditions
  • Localizes the laser beam at a distance of up to 80m
  • Large reception window of 85 mm to find the laser beam quickly
  • Optical and acoustic signals help to find the laser plane
  • Receiver holder with quick adjustment feature for wider scope of use
  • Ergonomically designed display on the front and the back
  • IP 65 protected against dust and water
  • Withstands drop-heights of up to 1.2m due to impact-absorbing rubber pads
  • Rugged receiver bracket for strong attachments to poles and levelling staffs
  • Strong magnets allow for metal attachment
Leica RGR 200 Laser Receiver Technical Specifications:
Working range* 2 m – 80 m (6.6 ft – 262 ft)
Accuracy (switchable) ±1.0 mm (±0.04 in) / ±3.0 mm (±0.12 in)
Detection window 85 mm (3.3 in)
Detection angle 130°
Detectable spectrum 635 ± 5nm (red) / 525 ± 5nm (green) Class 2 acc. IEC 60825-1
Illuminated display Front side and back side
Acoustical signal 100dB / 80dB / 0dB
Protection class IP 65 (IEC 60529) dust and jet water
Drop resistance 1.2 m (3.9 ft)
Battery type/life 2 x AA 1.5 V / 40+hours
Low power alert Digital display
Dimensions (L x W x H) 158 x 73 x 26 mm (6.22 x 2.87 x 1.02 in)
Weight with batteries 250 g (0.55 lbs)
Automatic shut-off 30 min without detection
Operating temperature -10…+50 °C (+14…+122 °F)
Storage temperature -25…+70 °C (-13…+158 °F)
Size Info’s Box Single 1 pcs = 14.8 cm x 21.5 cm x 8.2 cm Weight: 0.7 kg
*depending on lightning conditions
