The Leica Roteo 35 impresses everyone with its powerful features and complete set of accessories for every application, especially for interior works. The wall mount bracket allows convenient motorised control of the laser beam height by the combined remote control/detector or by manual adjustment.
Fully automatic horizontal and vertical laser
Motorized wall mount
Removable protective cage
Scan modus
90° plumb beam
Outstanding battery life for working without interruption
On ceilings or walls, on the floor or on a tripod, the Leica Roteo 35 rotating laser is a multi-talented performer. You can use it to work precisely on many indoor and outdoor tasks in which leveling or aligning is required.
Marking out right angles
The Leica Roteo 35 is also a great help in the vertcal plane. The combination of a vertical 360° reference plane and plumb beam simplifies layout, allowing you to work more accurately and efficiently on interior works.

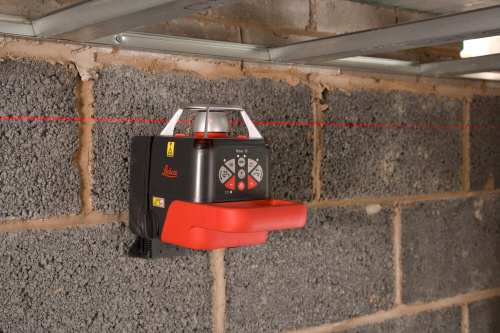

Installing ceilings and walls
With its motorized wall mount, the Leica Roteo 35 can be positioned on the wall and moved effortless backwards and forwards using the combined remote control/detector unit, allowing you to quickly suspend ceilings and erect drywalls.

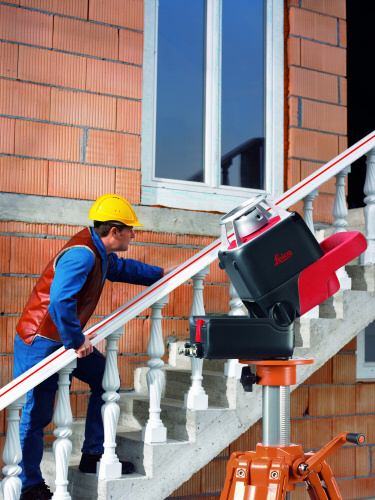

Stairs and roof pitches
You can position the Leica Roteo 35 / 35G manually or by means of the wall mount bracket at any angle between 0o and 90o, allowing you to work without any problems on stairs and roof pitches.

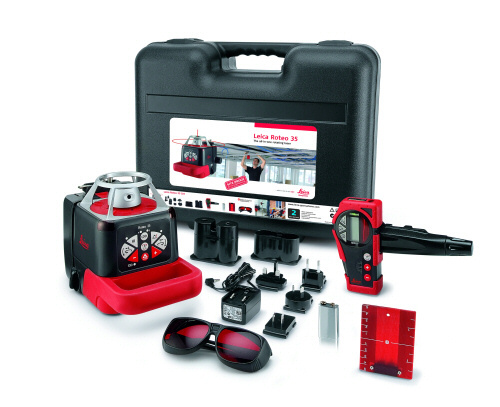

Leica Roteo 35WMR Delivery Package:
Leica Roteo 35WMR rotating laser
Motorized wall mount
RRC350 combined remote control/detector unit with clamp
9V-Battery for the combined unit
Battery holder for alkaline batteries
Rechargeable NiMH battery pack
International charger
Red target plate
Red laser glasses
Handy and easy-to-use the small partner for precise indoor measuring
Leica have been leading the market for over 18 years innovating new products. The Leica Roteo 35 rotating laser is another true Leica innovation of design, use and reliability. For ceilings or walls, on floors or used on a tripod, the Leica Roteo 35 rotating laser can adapt for many tasks where leveling or aligning is required.
The Leica Roteo is packed with standard features including an integrated motorised wall mount making it easy to set the working height to millimetre accuracy using the remote control. The rotating laser can automatically self-level for inclined set-ups of up to ± 4,5o. Laser scanning mode makes work easier by improving visibility in bright lighting conditions.
Leica Roteo 35WMR Technical Specifications:
Operating range (rotating beam)
up to 150 m (500 ft) radius with laser receiver
Self-leveling accuracy
± 3 mm at 30 m (± 1/8” at 100 ft)
Automatic self-leveling laser
horizontally, vertically
Self-leveling range
± 4.5°
Rotating speed
variable (5-settings)
Battery types
D-cell (mono), 2 x 1.5 V
or rechargeable battery pack
Battery life
50 hours (rechargeable)
up to160 hours (alkaline batteries)
Protection class
IP 54, dust- and splash-proof
Leica Roteo 35WMR Rotary Laser Demo Video
