Bosch GIS 500 Thermo Detector

Bosch GIS 500 Thermo Detector

SKU: 0601083480 Category: Thermal Cameras - Temperature Meter

The Bosch GIS 500 Professional thermo detector delivers high-quality and precise results in non-contact temperature reading ranging between -30 ⁰C to +500 ⁰C. Bosch GIS 500 Infrared Thermometer is having straight forward user interface for intuitive operation.

  • Simple – Immediate measurement results with a single press, with the selection of 3 emissivity grades for more accurate measurement
  • Compact – Easy to transport thanks to the ergonomic design of the housing with carrying case
  • Wide Temperature Range: The digital thermometer has a wide working range and can measure temperatures between -30°C and +500°C
  • Accurate measurement and easy recording of temperature
Description

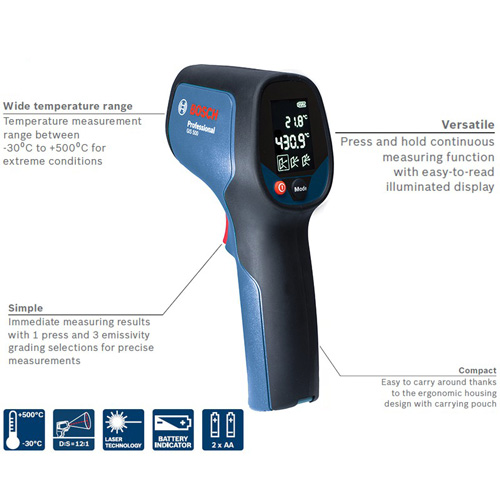

Key Features of Bosch GIS 500 Professional Thermo Detector

The Bosch GIS 500 Professional thermo detector delivers high-quality and precise results in non-contact temperature reading ranging between -30 ⁰C to +500 ⁰C. Bosch GIS 500 Infrared Thermometer is having straight forward user interface for intuitive operation.

  • Simple – Immediate measurement results with a single press, with the selection of 3 emissivity grades for more accurate measurement
  • Compact – Easy to transport thanks to the ergonomic design of the housing with carrying case
  • Wide Temperature Range: The digital thermometer has a wide working range and can measure temperatures between -30°C and +500°C
  • Accurate measurement and easy recording of temperature

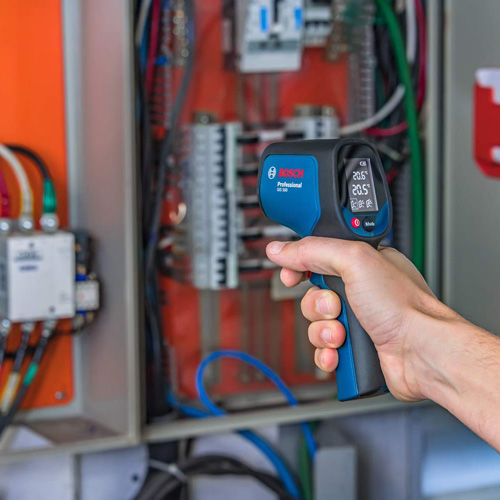

    • Electrical Applications – Quickly and effectively check cable connections, cabinets, and electrical components

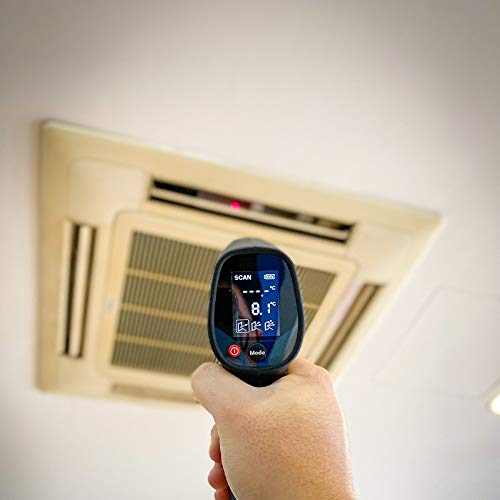

    • HVAC – Check underfloor heating and AC, locate leaks, and inspect radiators
    • Window Installation – Search for faulty insulation and thermal bridges and detect leaks and water penetration

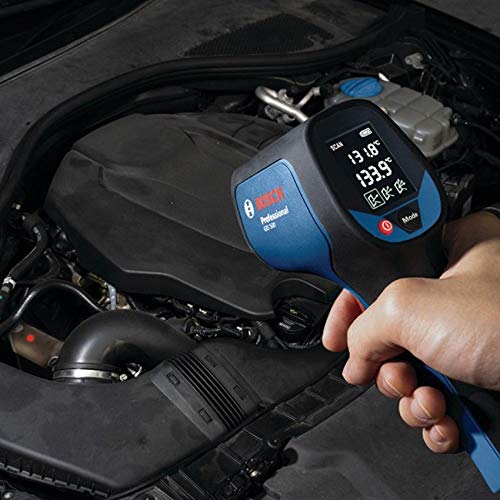

    • Automotive – Scan heating and cooling systems, fuse boxes, coolant pipes and catalytic converters or check the engine temperature
    • Characteristic – Non-contact, Multipurpose, No radiation & Fast and precise

Specifications of Bosch GIS 500 Temperature Meter

Measurement range -30°C to +500°C
Unit of measurement °C
Measuring accuracy (typical)
−30°C ≤ t ≤ −10°C ± (1.8℃ + 0.1 x |t| ℃)
−10°C < t < 0°C ± 2.8℃
0°C ≤ t < 100°C ±1.8℃
100°C ≤ t ≤ 500°C ± 1.8%
Power supply and runtime 2 x 1.5V LR6 (AA) batteries 9h
Operating temperature -5 – 50°C
Storage temperature -20 – 70°C
Optics 12:1
Dust and splash protection IP53
Weight 0.22kg
Warranty One Year Warranty
Bosch GIS 500 Scope of delivery:
  • Bosch GIS 500
  • Carrying Pouch
  • 1 x 1.5 V LR6 battery (AA)
  • User Manual
