Bosch GMS 120 Multi Detector

Bosch GMS 120 Multi Detector

SKU: 0601081000 Category: Wallscanner Detector

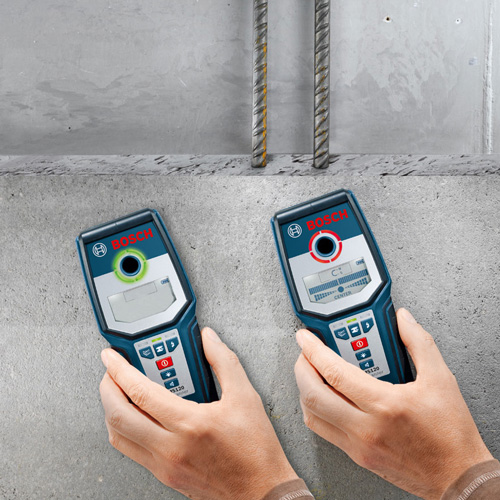

Bosch GMS 120 digital multi-scanner is an aid in most situations, as its modes cover wood studs, metal objects such as rebar, studs, and steel/copper pipes, and live wiring. It has precise automatic calibration that makes use easier and an automatic center finder, which pinpoints the center spot of the wood or material that has been detected.

  • Maximum reliability: most objects are found and application errors are avoided due to the automatic calibration
  • Reliable detection even of deep-lying objects – up to a depth of 12cm
  • Even more reliable detection of objects due to three-color LED luminous ring
  • Pinpoint indication of the object’s center with the Center Finder scale, and display of material properties
  • Better visibility of the result due to illuminated display

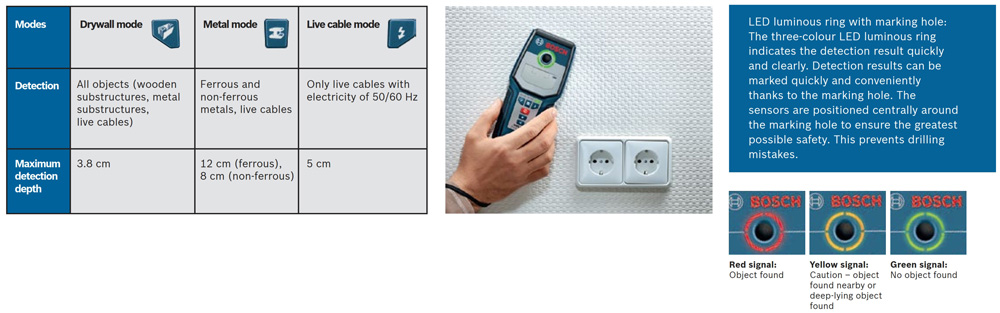

  • Three detection modes for various applications: Drywall mode, metal mode, live cable mode
Enquire Now
Description

Key Features of Bosch GMS 120 Professional Multi Material Scanner

Consistent Material Coverage

With its three modes, Bosch’s GMS120 digital multi-scanner is an aid in most situations, as its modes cover wood studs, metal objects such as rebar, studs, and steel/copper pipes, and live wiring. It has precise automatic calibration that makes use easier and an automatic center finder, which pinpoints the center spot of the wood or material that has been detected.

Deep Detection

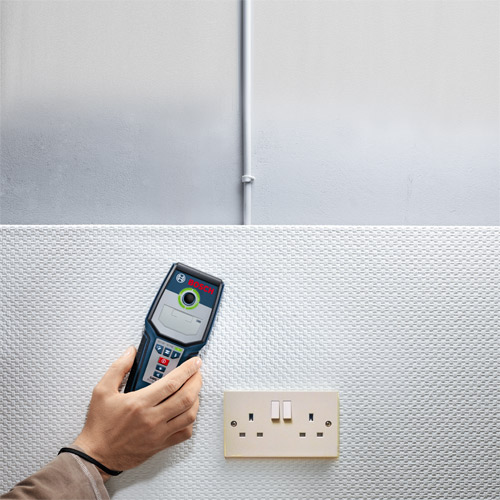

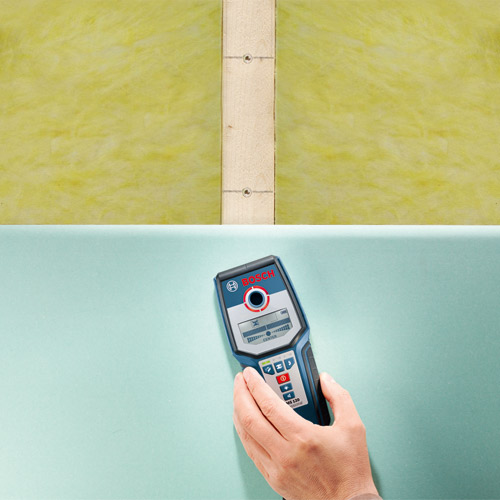

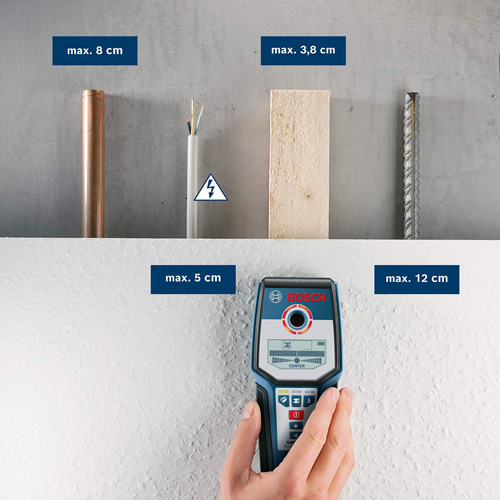

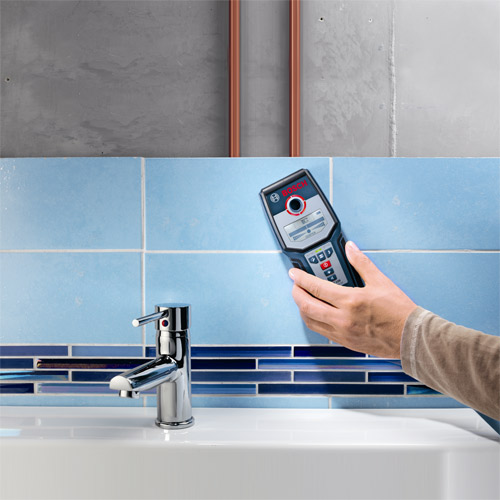

  • The Bosch GMS120 has a deep metal detection feature, which allows a user to detect steel that is placed up to 4-3/4-inches (120 mm) deep in cured concrete. It has a maximum detection depth of up to 2 inches for live wiring, up to 3-1/8 inches for copper, and up to 1-1/2 inches for wood studs.
User-Friendly Features
  • Bosch’s GMS 120 digital multi-scanner provides an illuminated ring that indicates detection status and an audible detection signal with an on/off button. Adding to the user-focused design, its bright and readable illuminated graphical LCD display indicates mode, detection strength, and more, making it simple to check the detection device and switch modes and tasks. In addition, its ergonomic soft-grip provides a comfortable grip that’s secure and safe.

Specifications of Bosch GMS 120 Detector

Detection depth, steel, max. 150mm
Detection depth, copper, max. 80mm
Max. detection depth 120mm
Detectable materials Ferrous metals, non-ferrous metals, wooden studs, live cables
Detection depth of live cables, max. 50mm
Detection depth of wooden substructures, max. 38mm
Automatic deactivation, approx. 5 minutes
Power supply 1 x 9 V 6LR61
Dust and splash protection IP54
Weight, approx. 270g
Dimensions (L/W/H) 200 x 85 x 32mm
Warranty One Year Warranty
Bosch GMS 120 Scope of delivery:
  • Bosch GMS 120
  • Carrying Pouch
  • Hand Strap
  • 1 x 9 V block battery (6LR61)
Video of Bosch GMS 120 Professional Wall Scanner
