Technical Features

Fast and accurate EDM Capability

• New-design optical path improve the distance measurement accuracy and speed. Reflectorless 800m/600m. Fine 0.8s, track measurement 0.3s.

STM32 Architecture

• The STM32 MCU enables the total station have high processing speed and low-power consumption.

Intelligent trouble shooting software

• Intelligent total station trouble-shooting software, it can diagnose 90% problems. Which is a strong tool for maintenance and repair people.

Full-seal Absolute Encoding Unit

• Full-seal absolute encoding unit avoid moisture& dust enter;
• Previous information remain after restart or power off, initialization not required.

Stable Dual-axis Compensation

• Configured for auto accuracy compensation.
• Compensation range: ±3'
• Vivid graphic electronic bubble display.

Rich Communication and Transmission

• Rich data transfer options for variable needs. Eg. USB pen drive, SD card, Mini USB interface
• Bluetooth enables wireless data transfer
• Support handbook.

• Coordinate Measurement
• REM
• MLM
• Distance Offset
• Plane Offset
• Resection
• Road
• Angle Offset
• Area
• Column Offset

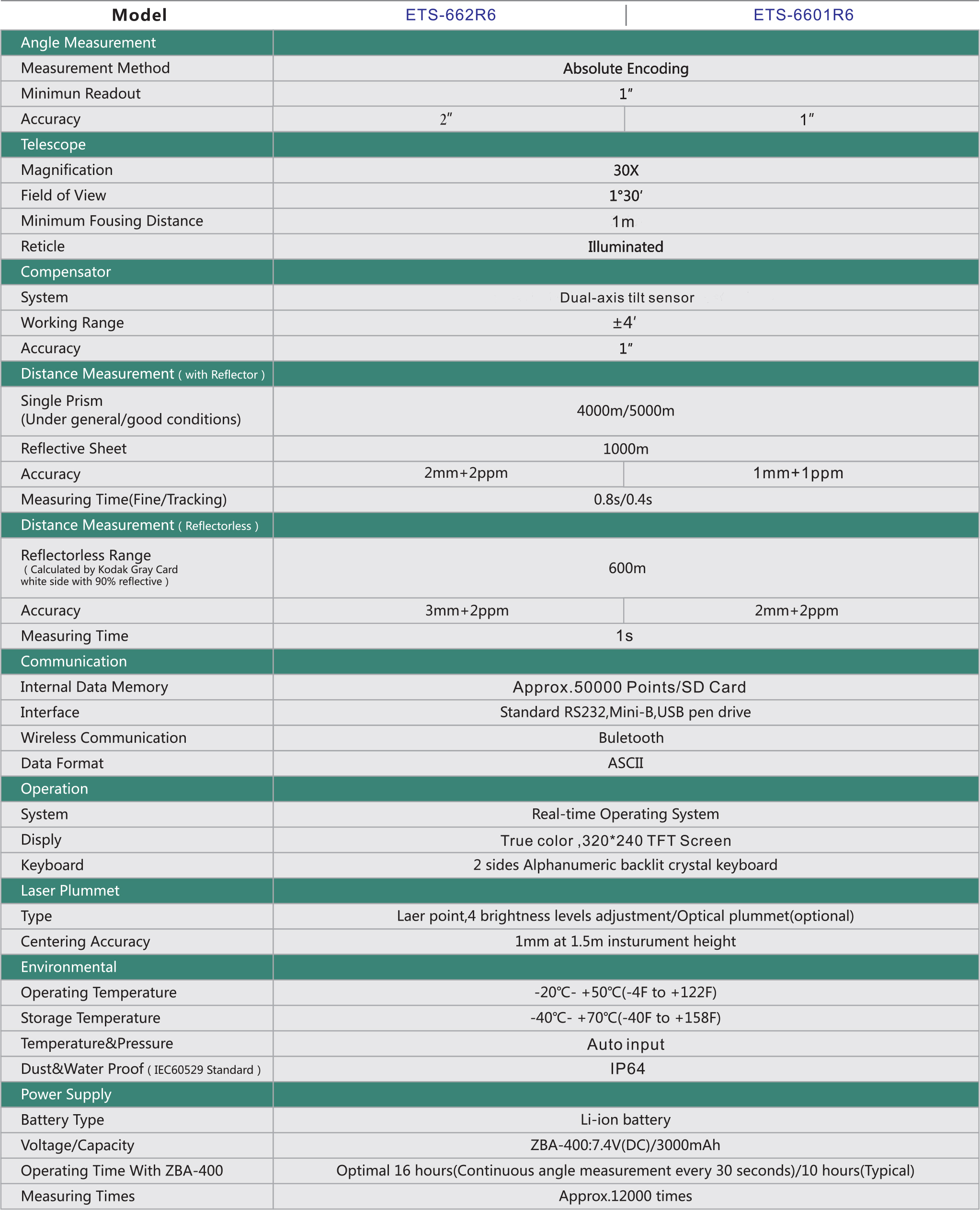

Specifications

• New-Design Optical
• Path Full-Seal Encode Disk
• True Color Screen
• Powerful and Fast EDM Capability
• Absolute Encoder Angle Measurement
• STM32 Architecture
• Rich Communication and Transmission
• Stable Dual-axis Compensation
• Intelligent Callibration Software
• Temp-Pressure Sensor
• Light-Reduction Step Motor
• Laser Pointing and Laser Plummet
