The Bosch Gol 32D Optical Site Level has been designed for the experienced and novice users, with a build quality worth of the Bosch.
Bosch optical levels provide a perfect combination of precision and robustness. Reliable and exact results. Compact metal design suitable for construction sites and tough outdoor conditions.

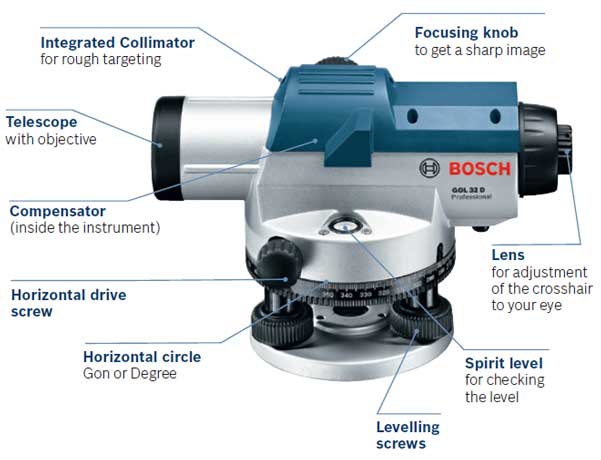

Every aspect of the Bosch GOL 32D demonstrates how series Bosch are with getting their survey tools designed and built to meet the users requirements. The Bosch Site Level GOL 32 D is not just another level. The Site proof casing surrounds the very high quality 32x magnification optics that offers clear images of the levelling staff over long and short distances. The housing on the Bosch 32D Automatic Level is solid with an easy 360 degree rotation plate with clear precise position marks. The base plate of the site level sits firmly on the Bosch Site tripod included with this kit. The site tripod is strong enough to be loaded used time and time again in all site environments offering a very stable platform for the Site Level. The Bosch 5 Meter levelling staff complements this excellent value package – The Bosch GOL 32 D Optical Site Level.
Model | Bosch GOL 32D Professional |
Unit of measure | 360 degrees |
Magnification | 32x |
Levelling accuracy | 1 mm at 30 m |
Working range | up to 120 m |
Dust and splash protection | IP 54 |
Tripod thread | 5/8″ |
Operating temperature | -10 – 50 °C |
Storage temperature | -20 – 70 °C |

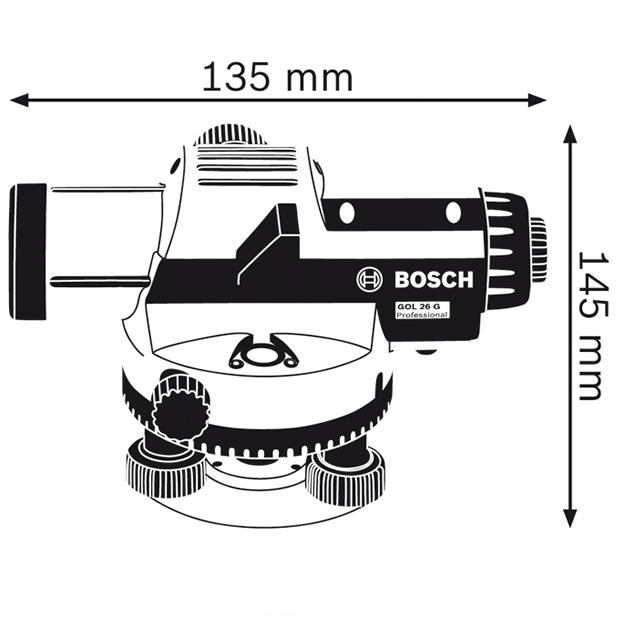

Length | 215 mm |
Width | 135 mm |
Height | 145 mm |
Weight, approx. | 1.7 kg |
