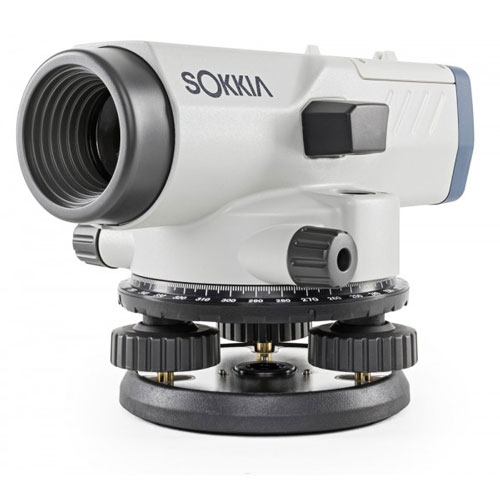

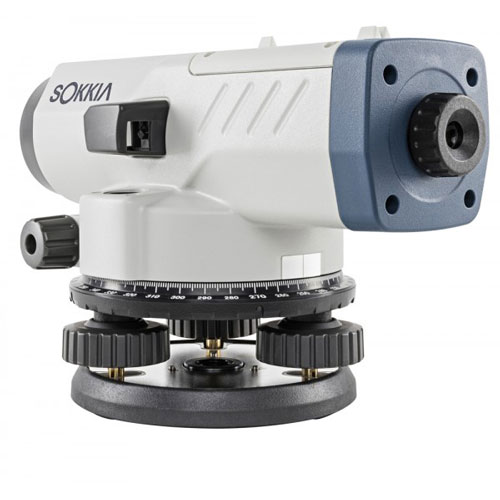

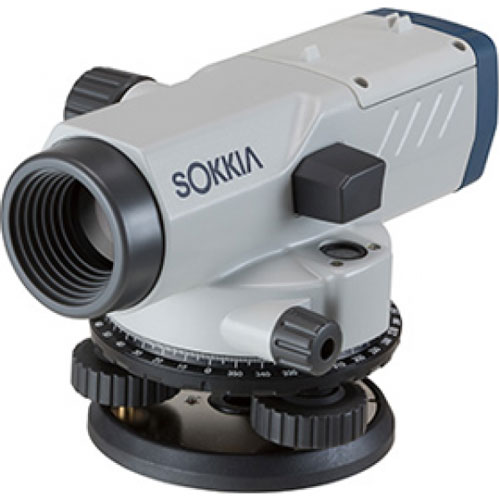

Sokkia B40A Auto Level – Only Level

Sokkia B40A Auto Level – Only Level

Model: Sokkia B40A Category: Auto Levels

The Sokkia B40A automatic level incorporate field-proven precise and reliable compensator for accuracy you can rely upon. The optimally designed telescope provides exceptionally bright and sharp view that reduces operator’s eyestrain. Quick collimation and horizontal angle measurement combine for fast and easy aiming of layout and alignment tasks.


Enquire Now
Description
Key Features of Sokkia B40A Automatic Level

Rapid, Stable, and Durable Compensator

  • The compensator of Sokkia B40A Optical Level incorporates four suspension wires made of super-high-tensile metal that features minimal thermal expansion coefficient, providing unmatched durability and accuracy. Finely tuned magnetic damping system quickly levels and stabilizes the line of sight despite the fine vibrations present when working near heavy equipment or busy roadways.

20cm (7.9 in.) – Ultra-Short Minimum Focus

  • Sokkia Auto Level B40A can focus on objects at 20cm (7.9 in.) in front of the telescope. This feature dramatically facilitates the works in confined spaces.

Horizontal Circle for Angle Measurement

  • Horizontal angles can be directly read in 1° or 1gon units. Free rotation feature allows you to read any angle from zero.

All-Weather Dependability

  • With the IPX6 rating, the instrument is protected against powerful water jets from all directions, meaning Sokkia Level B40A withstands a sudden shower or torrential rainfall.
  • The advanced protection design also deters clouding or condensation inside the telescope.
SOKKIA QUALITY
Ultimate Environmental Performance and Durability

SOKKIA has been performing environmental tests against a set of expected job site conditions to certify the products for long term use. The B Series has been tested by special inspection equipment for complete waterproofness. The B Series also has the highest environmental performance and durability in SOKKIA’s Auto Level history, proven by tests against temperature, humidity, vibration and drop.

Water Proof Test (IPX6)

The B Series is proven to withstand powerful water jets from all directions without any submergence inside the unit.

Cold and Heat Resistance Test

  • The B Series has passed operating temperature tests from -20 to +50 degree.

Durability Test

  • The B Series has passed strict durability tests including rotation of the leveling foot screw, Focusing knob and Horizontal fine motor screw.

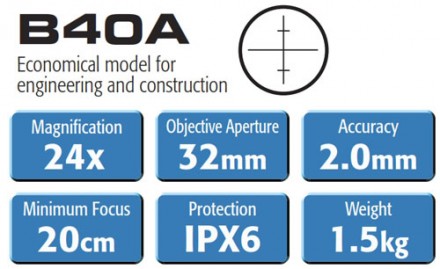

Sokkia B40A Auto Level Technical Specifications:
Model Sokkia B40A
Telescope
Length 214mm (8.42in.)
Magnification 24x
Objective Aperture 32mm (1.26 in.)
Resolving Power 4″
Field of View
(at 100m/328ft.)		 1°25’ (2.5m / 8.2ft.)
Minimum Focus 0.2m (7.9 in.) from end of telescope
0.3m (1ft.) from instrument center
Image Erect
Stadia Constant 0
Stadia Ratio 100
Focusing Knob 1-speed
Sighting Aid Gun Sight
Accuracy (1km double run leveling)
Without Micrometer 2.0mm (0.08 in.)
With Micrometer n/a
Compensator
Type Pendulum compensator with magnetic damping system
Setting Accuracy 0.5″
Working Range ±15′
Circular Level
Sensitivity 10′ / 2mm
Horizontal Circle
Diameter 99mm (3.9in.)
Minimum Division 1°/ 1gon
General
Water Resistance IPX6 (IEC 60529:2001)
Operating Temperature -20 to +50ºC (-4 to +122°F)
Size Width x Length x Height 122mm (4.8in.) x 214mm (8.4in.) x 140mm (5.51in.)
Weight 1.5kg (3.3lbs.)
Sokkia B40A Optical Auto Level Scope of delivery
  • Sokkia B40A Auto Level
  • Hexwrench
  • Adjusting pins
  • Cleaning cloth
  • Lens cap
  • User manual
  • Hard carrying case
