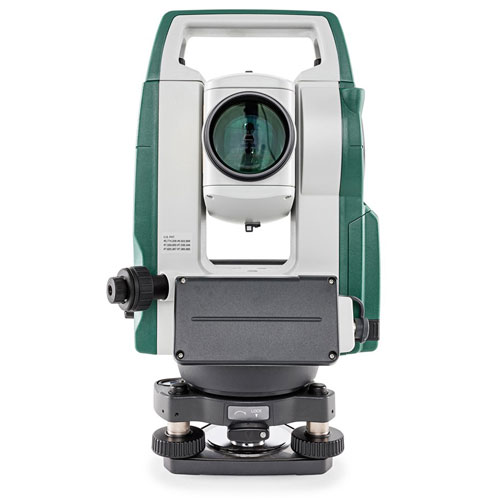

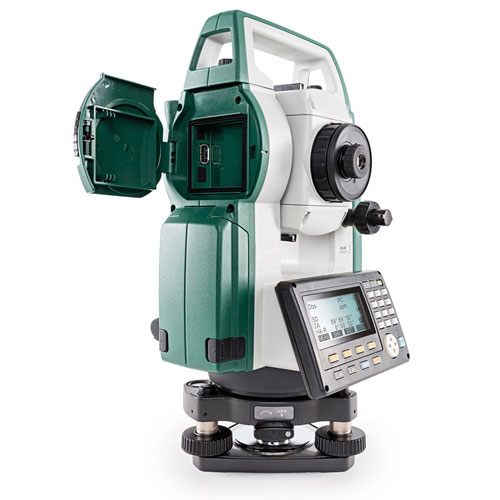

Sokkia CX 65 Total Station

Sokkia CX 65 Total Station

Model: Sokkia CX 65 Total Station Category: Total Station

The Sokkia CX 65 Reflectorless Total Station is a builder class instrument with an IP66 waterproof casing and reflectorless EDM technology. In addition, the Sokkia CX-60 series total station features other key specifications such as dual axis compensation, 15-hour battery life, on-board survey software capable of storing 10,000 points and USB flash memory (max. 8GB). These features combined with the affordable price, makes it the perfect entry-level solution for site layout or as-built survey.

RED-tech Technology Reflectorless EDM

  • 5" Accuracy, Fast distance measurement of 0.9s.
  • Sokkia's traditional pinpoint precision in reflector-less distance measurement.
  • Reflectorless operation from 30cm to 350m.
  • Coaxial EDM beam and laser-ponter provide fast and accurate aiming.
  • Ensures accuracy even with reflective sheets.

Waterproof, Rugged, and Operator Friendly

  • IP66 dustproof I waterproof rating.
  • Rugged metal chassis and heavy duty handle.
  • Standard usage temperature range -20° to 60°C.
Description
Key Features of Sokkia CX65 Reflectorless Total Station

The Sokkia CX-65 Reflectorless Total Station allows construction professionals to measure distance of up to 1,148 feet without a prism. Maximize the distance measuring range up to 13,120 feet by using a single prism and get highly accurate results, even in dangerous or difficult to reach locations. Ideal for entry-level site layout and surveying, this Sokkia total station also features dual axis compensation which automatically corrects the vertical and horizontal angle for miss-leveling error.

Advanced Angle Measurement System

  • The Sokkia CX-65 Total Station features Sokkia’s orginal absolute encoders which provide long-term reliablity in any job site condition. The dual-axis compensator ensures stable measurements even when setup on uneven terrain.
  • Sokkia’s traditional motion clamp and tangent screw are employed to ensure stable angle measurement.

Perfect for entry-level site layout and surveying, the Sokkia CX 65 5-Second Reflectorless Total Station is a highly accurate and fast measuring device. It calculates angles and distances up to 350 meter away in reflectorless mode and up to 4000 meter when using a single prism. This surveying equipment also features dual axis compensation for stable measurements on uneven terrain.

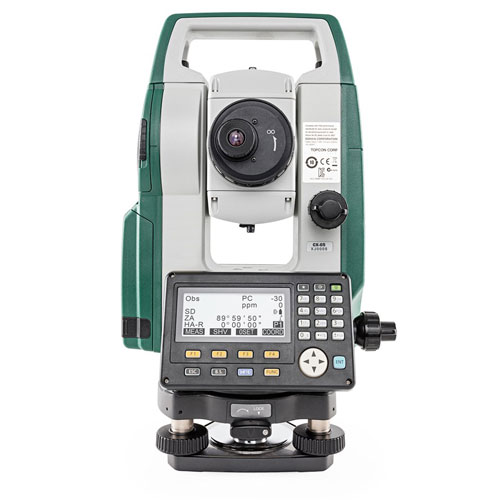

The Sokkia Total Station CX-65 has a single, backlit graphic display and 25 alphanumeric keys for easy controls and setup. It also has a built-in coaxial EDM beam and laser pointer for fast and accurate aiming, which ensures accuracy even with reflective sheets.

With 10,000 points internal memory and upto 8GB USB flash drive support, the Sokkia CX-60 series Electronic Total Station can store all data in the field. It also features a rugged, IP66 water resistant design to survive adverse weather conditions on the jobsite. This reflectorless total station has a 15-hour battery life and on-bard survey software.

Sokkia Total Station CX65 Technical Specifications:
Model Sokkia CX65 Total Station
Telescope
Magnification / Resolving Power 30x / 2.5"
Length 171mm
Objective aperture 45mm (48mm for EDM)
Image Erect
Field of View 1°30" (26m / 1,000m)
Minimum focus 1.3m
Reticle illumination 5 brightness levels
Angle Measurement
Display Resolution 1"/5" (0.0002 / 0.001gon, 0.005 / 0.02mil)
Accuracy (ISO 17123-3:2001) 5"
Dual Axis Compensator / Collimation Compensation Working range ±6" (±111 mgon)
Collimation compensation available
Distance Measurement
Laser output (Reflectorless mode) Class 3R / Prism / sheet mode: class 1
Range reflectorless mode 0.3 to 350m
Range prism mode upto 4,000m
Measuring Time
Fine Measurement Mode 0.9 sec.(Intial 1.7 sec.)
Rapid Measurement Mode 0.7 sec.(Intial 1.4 sec.)
Tracking Measurement Mode 0.3 sec.(Intial 1.4 sec.)
Interface and Data Management
Display / Keyboard Graphic LCD, 192 x 80 dots, backlight, contrast adjustment / alphanumeric keyboard / 25 keys with backlight
Control panel location Single side
Data storage (Internal memory) Approx. 10,000 points
Data storage (Plug-in memory device) USB flash memory (max. 8GB)
Interface Serial RS232C
General
Laser pointer Coaxial red laser using EDM beam
Levels Graphic 6" (Inner Circle)
Circular Level 10'/2mm
Optical Magnification: 3x
Minimum focus: 0.3m from tribrach bottom
Dust and water protection IP66 (IEC 60529:2001)
Operatig temperature -20°C to 60°C
Size with handle (w x d x h mm) 191 x 174 x 348
Weight with batter and tribrach Approx. 5.4kg
Power Supply
Battery (BDC46C) Detachable battery Li-ion rechargeable battery
Operating time (20°C) BDC46C Approx. 15 hours (Single distance measurement every 30 seconds)
In The Box

Sokkia CX 65 Total Station Scope of delivery

  • Sokkia CX65 Total Station
  • 1 No. Battery (BDC46C)
  • 1 No. Battery Charger (CDC68A)
  • Battery Adapter
  • Power Cable
  • Lens Cap
  • Lens Hood
  • Tool Pouch
  • Screwdriver
  • Lens Brush
  • Adjusting Pin 2x
  • Cleaning Cloth
  • Operation Manual (CD-R)
  • Carrying case
  • Carrying Strap
  • Heavy Duty Wooden Tripod
  • Prism with Holder & Target Plate
  • Telescopic Prism Pole
