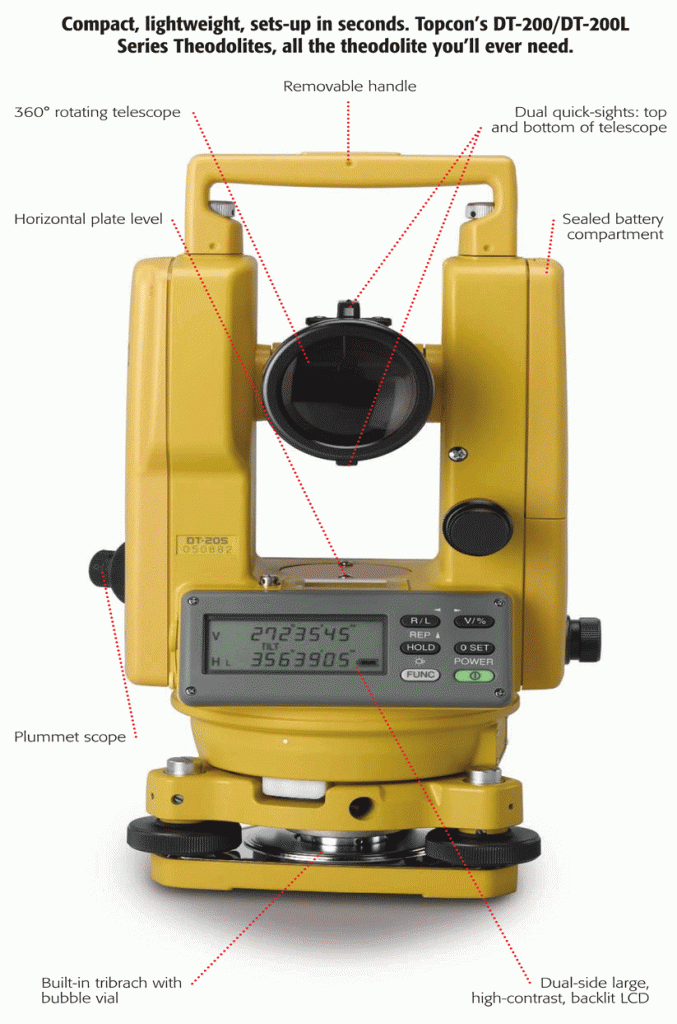

Topcon DT-200 Series Digital Theodolite

Topcon DT-200 Series Digital Theodolite

Model: Topcon DT-200 Series Category: Digital Theodolite

The Topcon  DT-200 series integrates the same high-quality advanced absolute circle reading technology found in Topcon's high-performance total station products for more accurate field calculations; and they continue to deliver the highest quality

optics and electronics you expect to find in Topcon theodolites.

Topcon DT-200 Series Features:

  • Long Battery Life
  • Waterproof and Dustproof Digital Theodolites

Available in three affordable models delivering 5', 7', or 9' angle accuracy, there is a DT-200 theodolite perfect for any job. Like the DT-100 series, the DT-200 series weathers any wet or dust conditions in the field, allowing for a more productive day during inclement weather. All models are also compact and lightweight for easy portability; and their simple operation provides precise measurement in a functional, hassle-free package.

Description
Features of Topcon DT-200 Series Digital Theodolite

Longer battery powering duration

  • Longer battery powering durations using alkaline batteries. Continuous angle measurement for 150 hours. Laser continuous angle measurement for 45 hours.

Absolute encoder is used

  • Detection of 0° position is no longer needed. Stable, high-accuracy measurement.

Laser pointer

The laser pointer is injected in collimation direction by simply operating one switch. Workers can perform work without guidance by observation personnel.

Excellent waterproof structure

  • The theodolite body is guarded against a sudden torrential rain and dirt. The theodolite can be used reliably at work sites under severe conditions.
  • JIS C 0920 protection class IP66 (Dustproof and waterproof types)

Model DT-205 DT-207 DT-209/209P
Telescope Length 149mm 149mm 149mm
Objective lens 45mm 45mm 40mm
Magnification 30x 30x 26x
Field of view 1°30' 1°30' 1°30'
Resolving power 2.5" 2.5" 3"
Minimum focus 90cm 90cm 90cm
Stadia ratio 100 100 100
Stadia constant 0 0 0
Sighting collimator Double Double Double
Electronic Angle Measurement Method Absolute Reading Absolute Reading Absolute Reading
Detecting Horizontal: 2 sides Horizontal: 2 sides Horizontal: 1 side
Vertical: 1 side Vertical: 1 side Vertical: 1 side
Miimum Reading 1"/5" 5"/10" 10"/20"
5" 7" 9"
Accuracy 71mm 71mm 71mm
Diameter Circle 2 sides 2 sides 1 side
Display Unit LCD 7segments LCD 7segments LCD 7segments
Data Output Serial signal connector (RC-232C) - -
Illumination Display
Reticle     -
Compensator Tilt sensor (Vertical) - -
Compensating range ±3' - -
Optical Plumment Telescope Magnification 3x 3x 3x
Field of view
Focusing 0.5m to ∞ 0.5m to ∞ 0.5m to ∞
Level Sensitivity Plate level 40"/2mm 40"/2mm 60"/2mm
Circular level 10"/2mm 10"/2mm 10"/2mm
Water Protection Standard IP66 IP66 IP66
Power Supply Battery 4AA batteries 4AA batteries 4AA batteries
Operating time (Alk.) Theodlite only 140h 150h 170h
Operating Temp. -20℃ to + 50℃ -20℃ to + 50℃ -20℃ to + 50℃
Weight 4.1kg 4.1kg 3.4/3.8kg
Model DT-205L DT-207L DT-209L
Telescope Length 152mm 152mm 152mm
Objective lens 45mm 45mm 40mm
Magnification 30x 30x 26x
Field of view 1°30' 1°30' 1°30'
Resolving power 2.5" 2.5" 3"
Minimum focus 1m 1m 1m
Stadia ratio 100 100 100
Stadia constant 0 0 0
Sighting collimator Double Double Double
Electronic Angle Measurement Method Absolute Reading Absolute Reading Absolute Reading
Detecting Horizontal: 2 sides Horizontal: 2 sides Horizontal: 1 side
Vertical: 1 side Vertical: 1 side Vertical: 1 side
Miimum Reading 1"/5" 5"/10" 10"/20"
0.2mgon/ 1mgon 1mgon/ 2mgon 2mgon/ 5mgon
Accuracy 5" 7" 9"
Diameter Circle 71mm 71mm 71mm
Laser Pointer Method Focusing Focusing Focusing
Wave length/ Power 633nm/ 0.6mW 633nm/ 0.6mW 633nm/ 0.6mW
Laser Class Class 2 Class 2 Class 2
Display Unit 2 sides 2 sides 1 side
LCD 7segments LCD 7segments LCD 7segments
Data Output Serial signal connector (RC-232C) - -
Illumination Display
Reticle     -
Compensator Tilt sensor (Vertical) - -
Compensating range ±3' - -
Optical Plumment Telescope Magnification 3x 3x 3x
Field of view
Focusing 0.5m to ∞ 0.5m to ∞ 0.5m to ∞
Level Sensitivity Plate level 40"/2mm 40"/2mm 60"/2mm
Circular level 10"/2mm 10"/2mm 10"/2mm
Water Protection Standard IP66 IP66 IP66
Power Supply Battery 4AA batteries 4AA batteries 4AA batteries
Operating time (Alk.) Theodlite only 140h 150h 170h
Lasor only 80h 80h 80h
Theodlite and Lasor 45h 45h 45h
Operating Temp. -20℃ to + 50℃ -20℃ to + 50℃ -20℃ to + 50℃
Weight 4.2kg 4.2kg 3.6kg
