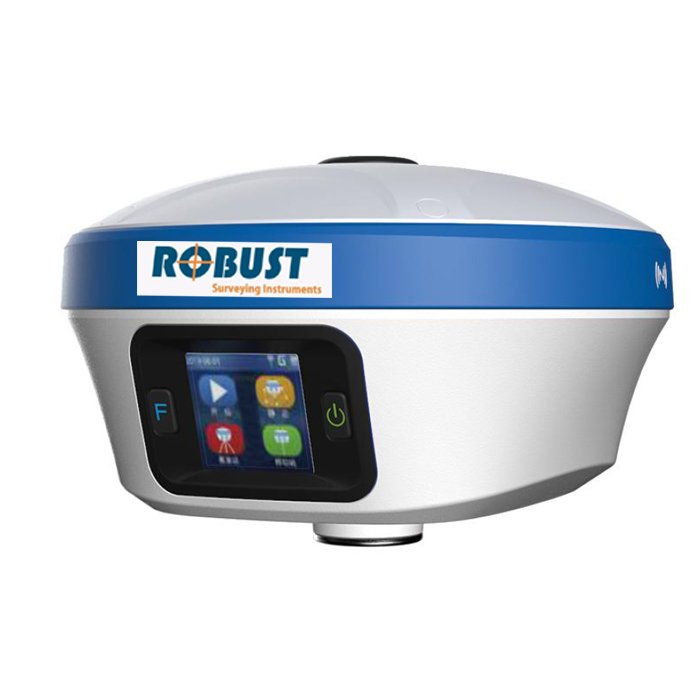

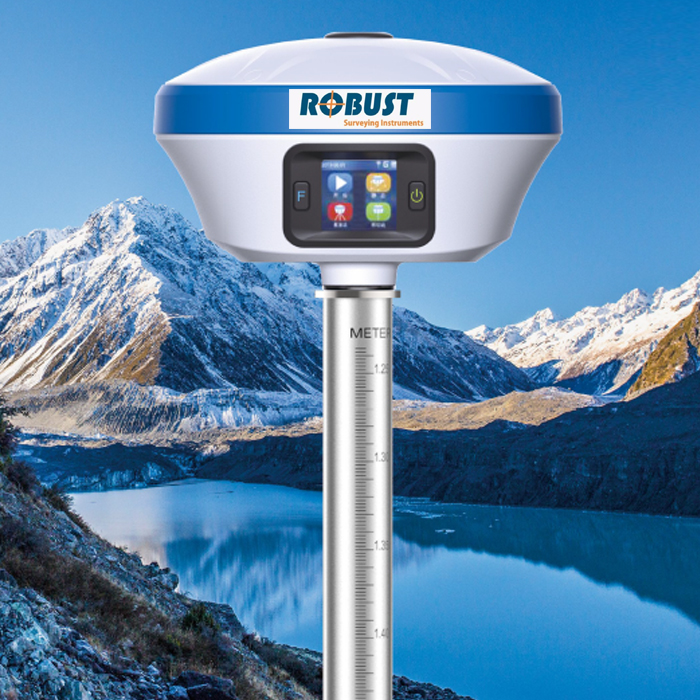

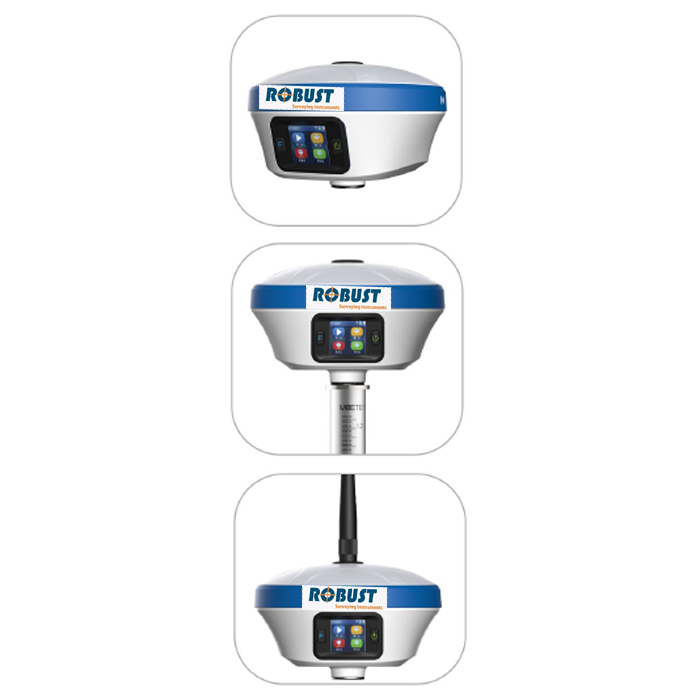

T20Pro is a high-performance GNSS receiver that provides an easy-to-use solution for users. You can forget the bubble when you use TokNav T20Pro, which support the original tilt compensating GNSS solution. Multi constellation and frequency tracking always gives a Fixed solution for your job. The durable IP68 design makes it possible to work in extreme environments.
Linux intelligent system
Qualcomm Cortex-A7+ Linux, the intelligent system platform, brings efficient computing and unlimited expansion of product functions to users.
Multi constellation
With its 1408 channels, T20Pro provides an excellent on board real time navigation solution with high accuracy. All GNSS signals (GPS, GLONASS, BEIDOU, GALILEO, QZSS and SBAS) are included.
T20Pro has the IMU technology. Fast initialization and up to 60° inclination.
4G Modem
T20Pro has an internal 4G modem that operates with more cellular network signals. A fast internet connection is guaranteed.

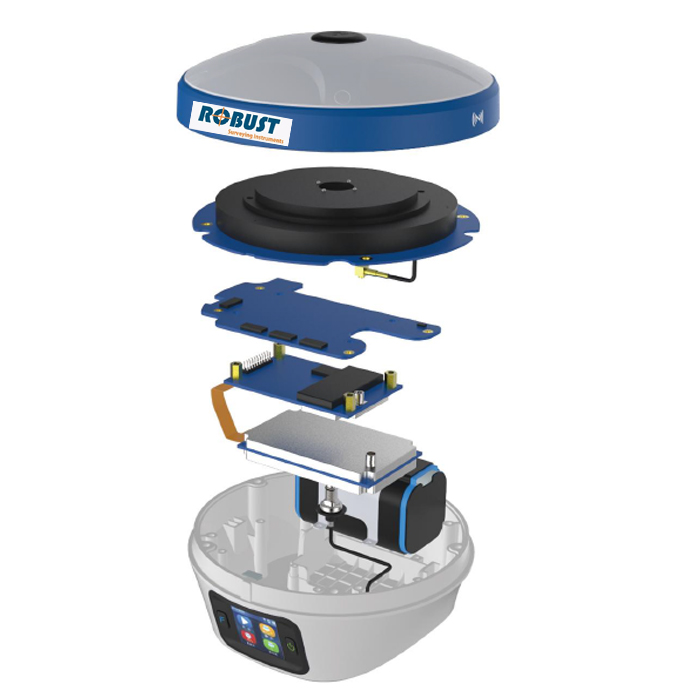

Combined antenna
The new four in one antenna integrates GNSS, WiFi, Bluetooth and 4G, with smaller volume and better signal.
Long endurance
Built in high-capacity lithium battery ensures continuous working time of more than 20 hours under normal operation.

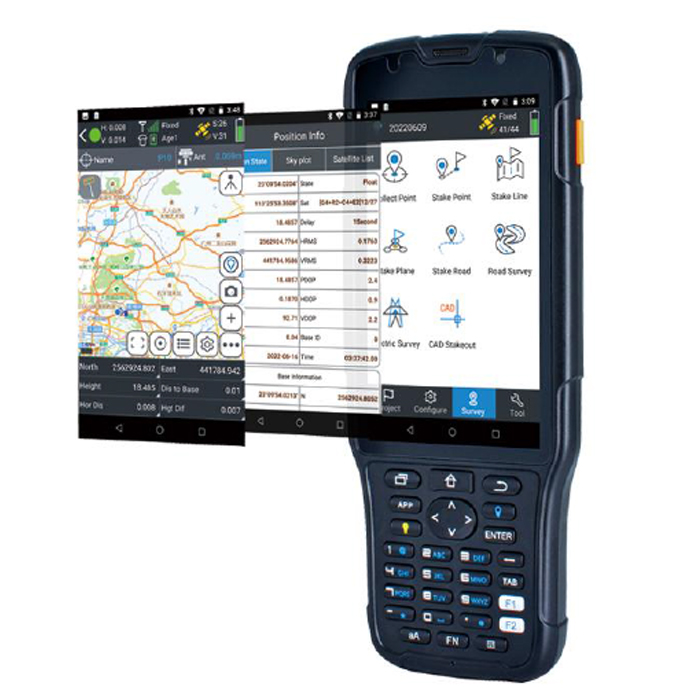

PCR100 Data Collector
The PCR100 Controller is a rugged multifunctional data controller with design of 5 inch sunlight readable HD touch screen and an alphanumerical keypad. Equipped with powerful Octa-core processor and Android oper- ating system. With professional IP68 rating, it is robust and reliable for outdoor harsh environment. The large capacity lithium battery guarantees more than 10 hours of field working for a whole day of multiple survey- ing tasks.
